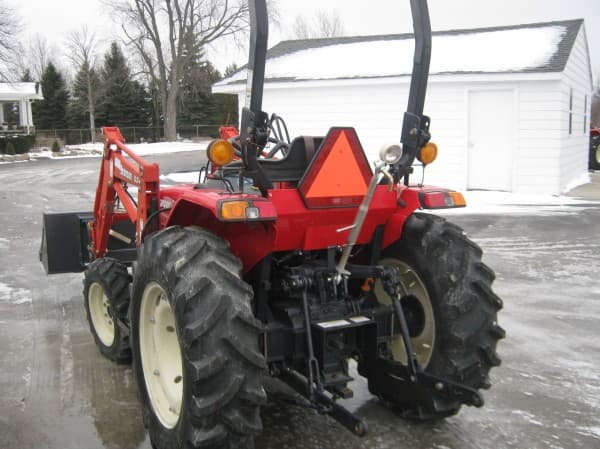

Branson 2910i

Last Updated: June 2024

Overview

The Branson 2910i is a Compact Utility tractor designed for versatility and performance. Equipped with a 4-wheel drive chassis, it provides excellent traction, essential for rugged terrains. The tractor features a hydrostatic power steering system for precise control and reduced operator fatigue. Its 3-cylinder diesel engine, manufactured by Kukje, is powerful yet fuel-efficient, producing up to 29 horsepower. It is liquid-cooled, ensuring the motor is maintained at an optimal temperature for flawless performance and longevity. The tractor also boasts a 12-speed synchronized transmission that allows for convenient speed changes during operation. Its open-center hydraulic system guarantees efficient and consistent fluid flow throughout the system. The tractor comes with a Cat I type rear hitch with a lift capacity of 2140 lbs. The dimensions, length, width, and height are 120, 59, and 95 inches respectively, with an operating weight of 3708 lbs.
Show more...

Key Specifications

Category: Utility

Power Output: 29

Transmission: Synchromesh

Drive Type: 4WD

Operating Weight: 3708

Fuel Type: Diesel

Branson 2910i vs. Similar Tractors

Power Output
Below Average
Greater than 23% of similar tractors.
Hitch Capacity
Average
Greater than 37% of similar tractors.
Operating Weight
Average
Greater than 32% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kukje
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
89
Bore (in)
3.307
Stroke (in)
3.465
Rated RPM
2600
Power Output (hp)
29

Transmission

Type
Synchromesh
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
120
Width (in)
59
Height (in)
95
Operating Weight (lb)
3708

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category I
Hitch Position
Rear
Hitch Capacity (lb)
2140 lbs
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Open Center
