Branson 2505h

Last Updated: June 2024

Overview

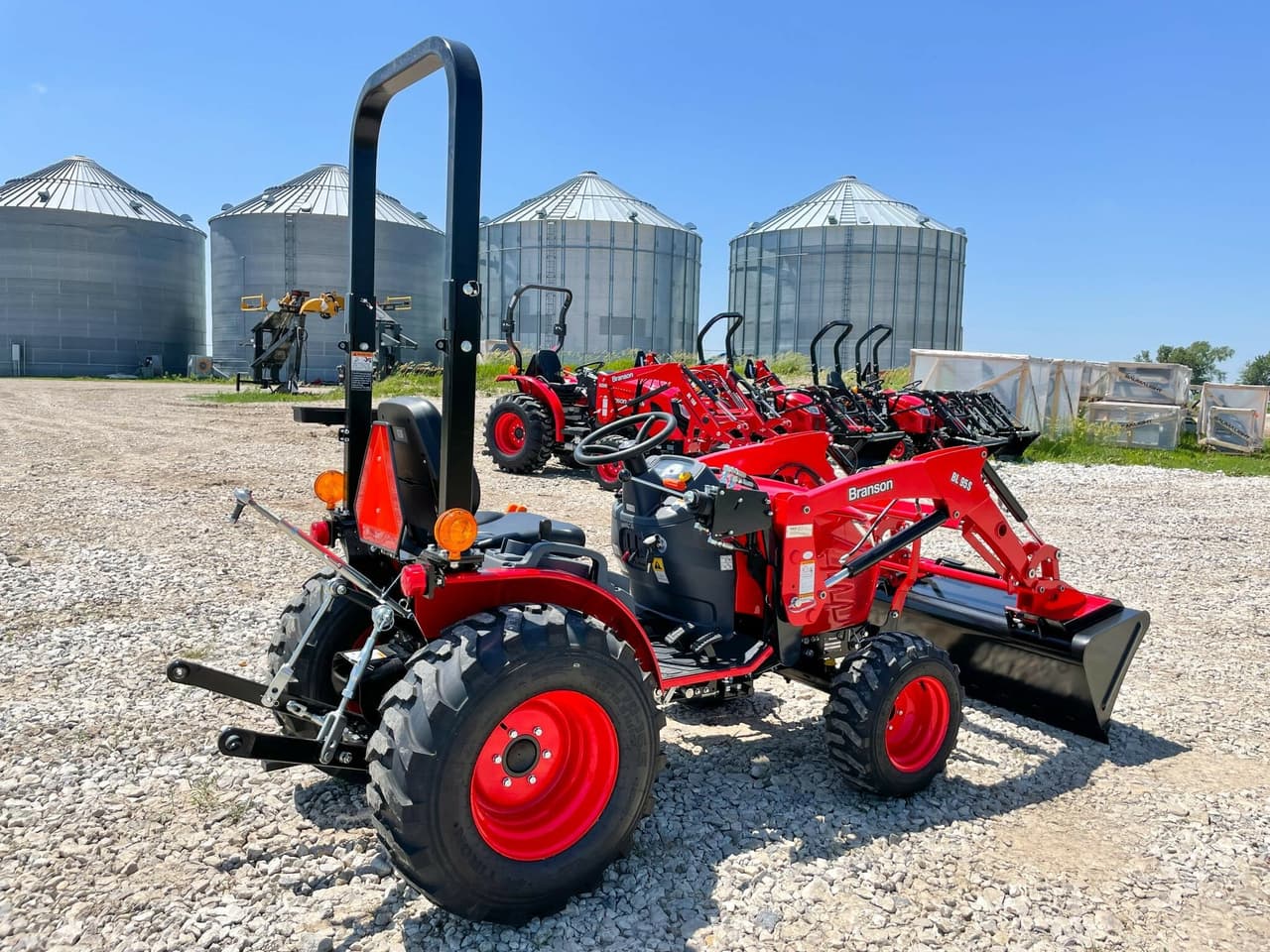

The Branson 2505h is a compact utility tractor manufactured by Branson (a part of Kukje). It is equipped with a Yanmar 3TNV80F diesel engine, which is a liquid-cooled, inline, 3-cylinder engine. This powerful engine gives the tractor a gross power output of 21.5 hp. The engine's displacement is 77.3 cubic inches, with a bore and stroke of 3.15 x 3.31 inches. The tractor operates at a rated RPM of 3000. The tractor's transmission is hydrostatic, which means it can move in an infinite number (2-range) of forward and reverse gears. The steering type of the tractor is power steering, making it easy to maneuver. The tractor uses a 4-wheel drive system for optimal traction and is suitable for a range of tasks due to its versatile tires, including standard, lawn/turf, and industrial types. The tractor also features a robust rear Type: I, Category 3 hitch system.
Show more...

Key Specifications

Category: Utility

Power Output: 21.5

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1638

Fuel Type: Diesel

Branson 2505h vs. Similar Tractors

Power Output
Below Average
Greater than 11% of similar tractors.
Operating Weight
Below Average
Greater than 13% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3TNV80F
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
77.3
Bore (in)
3.15
Stroke (in)
3.31
Rated RPM
3000
Power Output (hp)
21.5

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
100.5
Width (in)
45.8
Height (in)
91.3 (with ROPS)
Operating Weight (lb)
1638

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
12
Front Tire Width (in)
6
Rear Tire Diameter (in)
16
Rear Tire Width (in)
9.5
Front/Rear Rim Diameter (in)
-
Tire Type
Standard, Lawn/Turf, Industrial
Manufacture - End Year
-
Hitch Type
Rear Type: I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
-
Brake Type
-
Hydraulic System Type
Open center
