Bolens H1704

Last Updated: June 2024

Overview

The Bolens H1704 is a robust and solid tractor powered by an Iseki-made Mitsubishi K3B engine. The 3-cylinder diesel engine is liquid-cooled and equipped with glow plugs for pre-heating. It provides a power output of 17 horsepower and a torque of 34.7 lb-ft at 1800 RPM. The tractor makes use of a hydrostatic transmission, allowing for an infinite number of gears in both forward and reverse directions. Operating under a dry element air cleaner and having a compression of 22:01:00, it operates at a rated RPM of 2600. The tractor has dimensions measuring 76.8 inches in length, 45 inches in width, and stands 66 inches tall, while weighing in at 1268 lbs. It also features an open center hydraulic system and an easy-to-use electric starter.

Key Specifications

Power Output: 17

Transmission: Hydrostatic

Operating Weight: 1268

Fuel Type: Diesel

Image Gallery

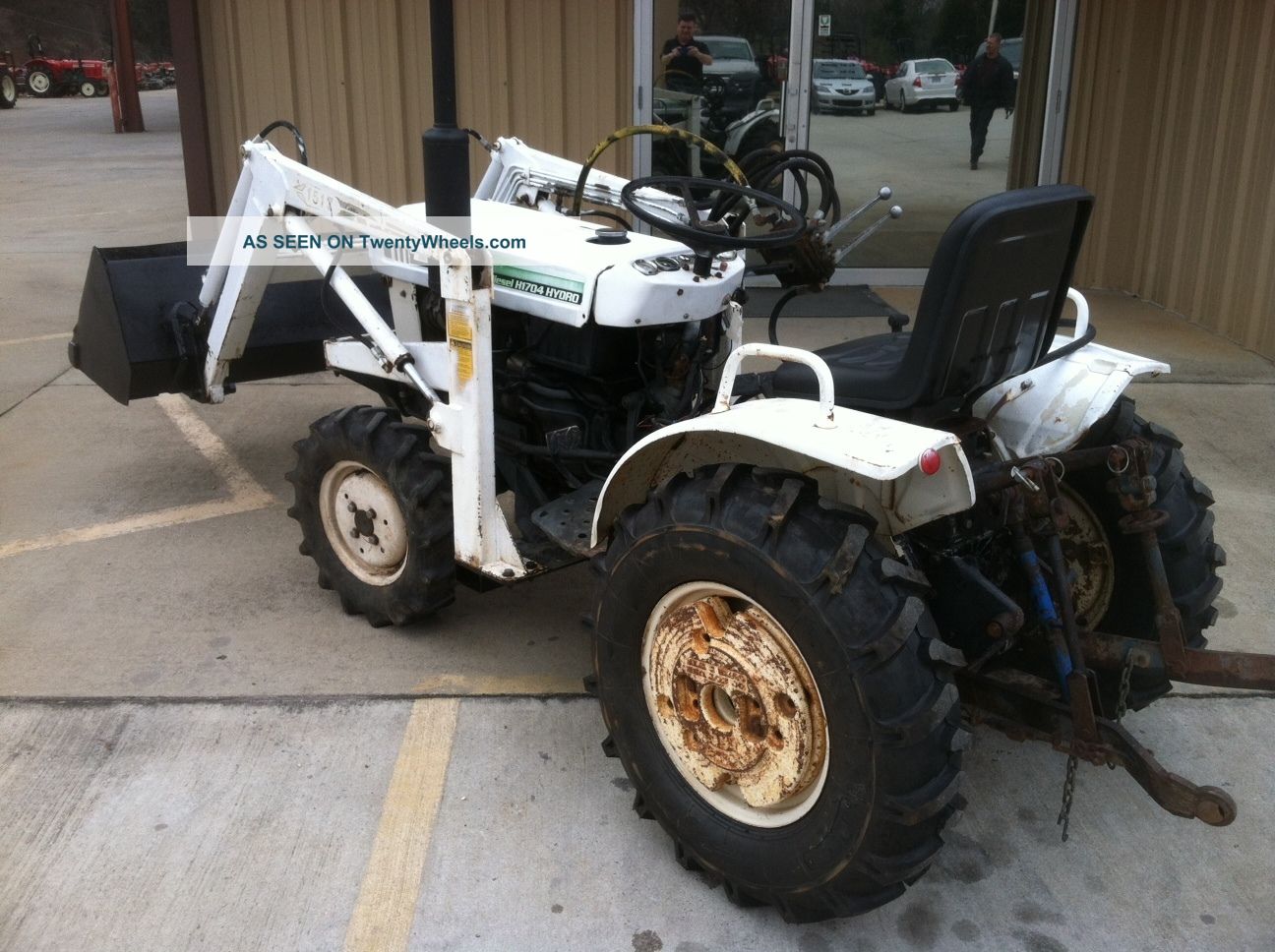

Bolens H1704 Tractor

Technical Specifications

Engine

Manufacturer: Iseki
Model: Mitsubishi K3B
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 51.7
Bore (in): 2.67
Stroke (in): 3.07
Rated RPM: 2600
Power Output (hp): 17

Transmission

Type: Hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 76.8
Width (in): 45
Height (in): 66
Operating Weight (lb): 1268

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): 4.4
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open center
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center
