Bolens G172

Last Updated: June 2024

Overview

The Bolens G172 is a compact and sturdy tractor model, notable for its power despite its small size. Its engine, a diesel, 2-cylinder, Mitsubishi KE75, outputs an impressive 17 horsepower, indicating that it can handle heavy tasks without issues. Its liquid cooling system betters thermal efficiency, thus affording the engine a longer service life. The model comes with dry disc clutch and an unsynchronized gear transmission that features 6-forward and 2-reverse gears for versatile mobility. Measuring 76.4 inches long, 37.8 inches wide, and with a height of 46.9 inches, the G172 can maneuver with relative ease across different terrains, making it an ideal choice for small farm operations and large gardens.

Key Specifications

Power Output: 17

Transmission: unsynchronized gear

Operating Weight: 1056

Fuel Type: diesel

Image Gallery

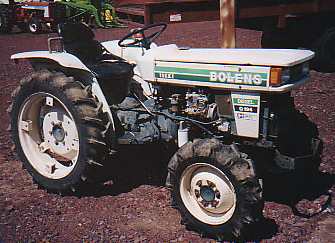

Bolens G172 Tractor

Technical Specifications

Engine

Manufacturer: Iseki, Mitsubishi
Model: KE 75
Cooling Type: liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: diesel
Induction Type: -
Cylinders: 2
Displacement (ci): 46.6
Bore (in): 3.07
Stroke (in): 3.15
Rated RPM: -
Power Output (hp): 17

Transmission

Type: unsynchronized gear
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 76.4
Width (in): 37.8
Height (in): 46.9
Operating Weight (lb): 1056

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): 4.4
Front Tire Diameter (in): -
Front Tire Width (in): 4
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard tires (ag)
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: -
