Bobcat CT445

Last Updated: June 2024

Overview

The Bobcat CT445 is a compact utility tractor that was designed with versatility and power in mind. It is equipped with a 4x4 MFWD 4WD chassis and hydrostatic power steering for smooth and efficient operation. The CT445 has an infinite (3-range) hydrostatic transmission for endless forward and reverse gears. It features a highly-efficient and liquid-cooled diesel engine with 4 cylinders and a displacement of 134.3ci, which delivers a power output of 45hp. This tractor is designed to be adaptable, offering different types of tires including Ag, Lawn/Turf, and Industrial, based on specific work demands. The tractor measures 134.3 inches in length, 69 inches in width, and 95.5 inches in height when the ROPS is installed, slightly shorter at 94.7 inches with the cab. At an operating weight of 3881 lbs with ROPS, it is a sturdy and dependable machine for a variety of tasks.

Key Specifications

Category: Utility

Power Output: 45

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 3881 (ROPS)

Fuel Type: Diesel

Image Gallery

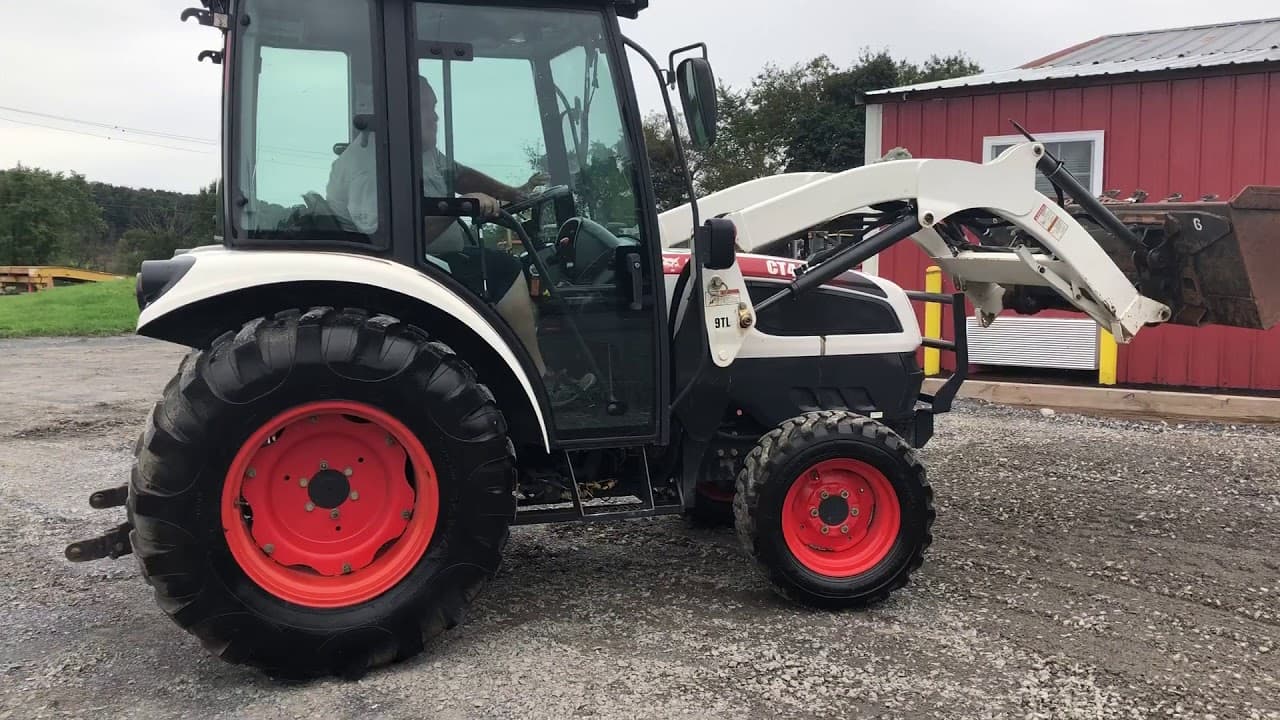

Bobcat CT445 Tractor

Bobcat CT445 vs. Similar Tractors

Power Output

Average

Greater than 43% of similar tractors.

Operating Weight

Average

Greater than 35% of similar tractors.

Technical Specifications

Engine

Manufacturer: Daedong
Model: -
Cooling Type: Liquid-Cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 4
Displacement (ci): 134.3
Bore (in): -
Stroke (in): -
Rated RPM: -
Power Output (hp): 45

Transmission

Type: Hydrostatic
Forward Gears: Infinite (3-range)
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 134.3
Width (in): 69
Height (in): 95.5 (ROPS) and 94.7 (Cab)
Operating Weight (lb): 3881 (ROPS)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 16
Front Tire Width (in): 8
Rear Tire Diameter (in): 24 (for Ag type)
Rear Tire Width (in): 13.6 (for Ag type)
Front/Rear Rim Diameter (in): -
Tire Type: Ag, Lawn/Turf, Industrial
Manufacture - End Year: -
Hitch Type: I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
