Bobcat CT335

Last Updated: June 2024

Overview

The Bobcat CT335 is a 4WD compact utility tractor manufactured by Daedong for distributor Bobcat in Daegu, South Korea from 2008 to 2013. It is equipped with a Daedong 3B183 3-cylinder diesel engine that produces 38 hp. Depending on preference, it has an option for a hydrostatic transmission with infinite (3-range) forward and reverse gears or a shuttle transmission with 12 forward and 12 reverse gears. The CT335 model also comes with an optional cab or ROPS and accommodates various tire types including Ag, Lawn/Turf, and Industrial types.

Key Specifications

Category: Utility

Power Output: 38

Transmission: Hydrostatic / Shuttle

Drive Type: 4WD

Operating Weight: 3668 (ROPS), 4079 (Cab)

Fuel Type: Diesel

Image Gallery

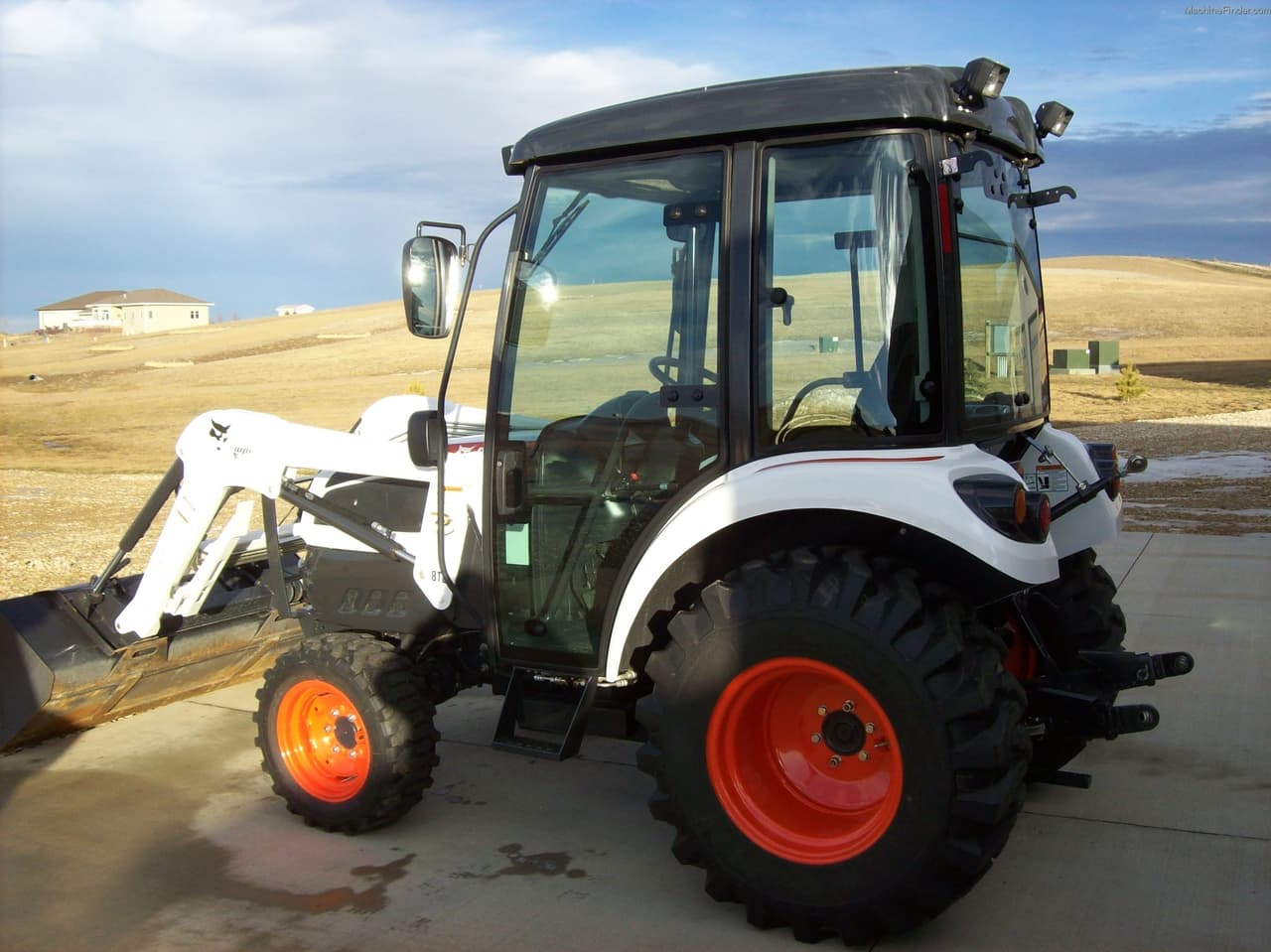

Bobcat CT335 Tractor

Bobcat CT335 vs. Similar Tractors

Power Output

Average

Greater than 35% of similar tractors.

Hitch Capacity

Excellent

Greater than 93% of similar tractors.

Operating Weight

Average

Greater than 32% of similar tractors.

Technical Specifications

Engine

Manufacturer: Daedong
Model: 3B183
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 3
Displacement (ci): 109.8
Bore (in): 3.43
Stroke (in): 4.03
Rated RPM: 2600
Power Output (hp): 38

Transmission

Type: Hydrostatic / Shuttle
Forward Gears: Infinite (3-range) / 12
Reverse Gears: Infinite / 12
Total Gears: -

Dimensions

Length (in): 128.7
Width (in): 62.6
Height (in): 63.4 (ROPS), 94.5 (Cab)
Operating Weight (lb): 3668 (ROPS), 4079 (Cab)

Power Take-Off (PTO)

PTO Type: Optional Middle / Independent Rear
PTO Speed 1 (rpm): 2000 (Middle), 540 (Rear)
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag, Lawn/Turf, Industrial
Manufacture - End Year: 2013
Hitch Type: -
Hitch Category: I
Hitch Position: -
Hitch Capacity (lb): 1700 lbs (at 24 in)
Operator Station Type: ROPS or Cab (optional)
Starter Type: Electric
Brake Type: Differential Wet Disc
Hydraulic System Type: -
