Bobcat CT1025

Last Updated: June 2024

Overview

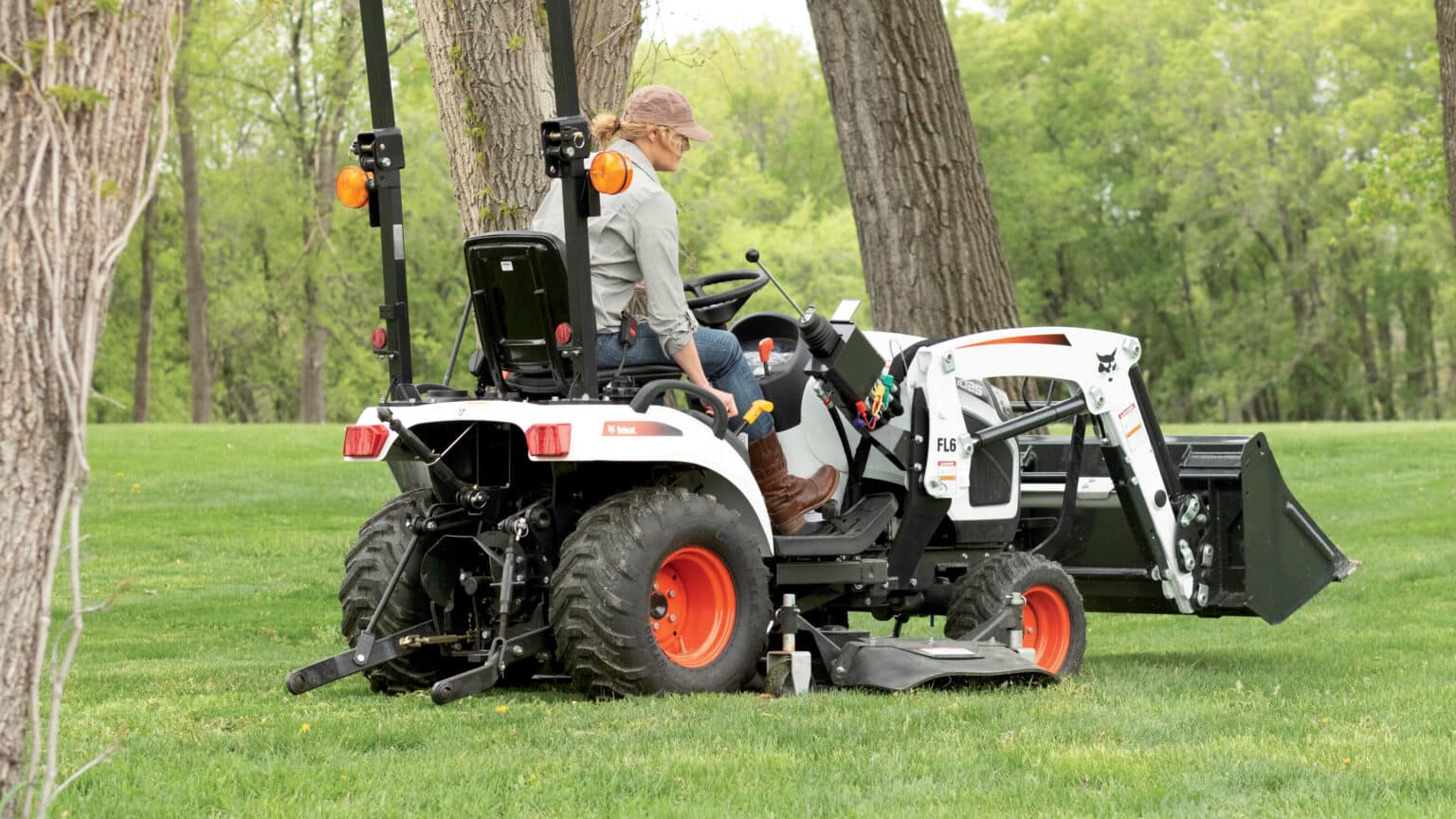

The Bobcat CT1025 model, powered by a Daedong Shibaura S733L 3-cylinder diesel engine, is a compact utility tractor. With an engine power of 24.5 hp and a rated RPM of 3000, this tractor provides a substantial amount of power for its size. The tractor has a large, liquid-cooled engine and boasts a displacement of 69.1 cubic inches. This model utilizes a hydrostatic transmission type, offering infinite forward and reverse gears within a 2-range system. It operates on either standard agricultural or industrial tires, depending on the specific model variant. The CT1025 grounds itself with a weight of 1488 pounds and spans a length of 99.3 inches, a width of 46 inches, with a height of 87.6 inches.
Show more...

Key Specifications

Power Output: 24.5

Transmission: Hydrostatic

Operating Weight: 1488

Fuel Type: Diesel

Image Gallery

Bobcat CT1025 Tractor Bobcat CT1025 Tractor Bobcat CT1025 Tractor Bobcat CT1025 Tractor Bobcat CT1025 Tractor Bobcat CT1025 Tractor Bobcat CT1025 Tractor Bobcat CT1025 Tractor Bobcat CT1025 Tractor Bobcat CT1025 Tractor

Technical Specifications

Engine

Manufacturer
Daedong
Model
Shibaura S733L
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
69.1
Bore (in)
3.03
Stroke (in)
3.19
Rated RPM
3000
Power Output (hp)
24.5

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
99.3
Width (in)
46
Height (in)
87.6
Operating Weight (lb)
1488

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
18
Front Tire Width (in)
8.5
Rear Tire Diameter (in)
26
Rear Tire Width (in)
12
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag) / Industrial
Manufacture - End Year
-
Hitch Type
Rear Type: I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
