Big Bud KT525

Last Updated: June 2024

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 525

Transmission: Manual

Drive Type: Four-wheel Drive (4WD)

Operating Weight: 43000

Fuel Type: Diesel

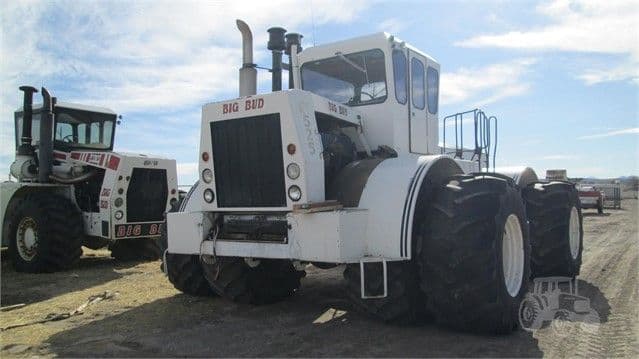

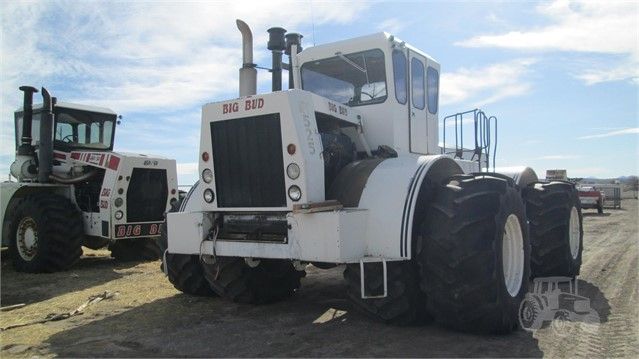

Image Gallery

Big Bud KT525 Tractor Big Bud KT525 Tractor Big Bud KT525 Tractor Big Bud KT525 Tractor Big Bud KT525 Tractor Big Bud KT525 Tractor

Big Bud KT525 vs. Similar Tractors

Power Output
Excellent
Greater than 98% of similar tractors.
Operating Weight
Above Average
Greater than 75% of similar tractors.

Technical Specifications

Engine

Manufacturer
Cummins
Model
-
Cooling Type
Liquid-Cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
6
Displacement (ci)
1150
Bore (in)
6.25
Stroke (in)
6.25
Rated RPM
2100
Power Output (hp)
525

Transmission

Type
Manual
Forward Gears
13
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
43000

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 4WD
Drive Type
Four-wheel Drive (4WD)
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
30.5
Rear Tire Diameter (in)
-
Rear Tire Width (in)
30.5
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
