Big Bud HN360

Last Updated: June 2024

Overview

The Big Bud HN360 is a high-powered, four-wheel drive tractor. It boasts a robust Cummins NTA855 engine, turbocharged and aftercooled, with 6 liquid-cooled cylinders. The engine's displacement is a sizable 855 cubic inches, with a bore and stroke measuring 5.50 and 6.00 inches respectively. With a power output of 360 horsepower and a rated RPM of 2100, this tractor is built for demanding fieldwork. The strong, articulated 4WD chassis and hydrostatic power steering contribute to its impressive handling and maneuverability. Featuring a 12-speed gear transmission with an additional 2 reverse gears, the Big Bud HN360 delivers flexibility and control in various operations. Its substantial operating weight of 39,000 pounds reinforces its capacity to perform heavy-duty tasks with ease. The starting system is electric, ensuring reliable operation.

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 360

Transmission: Gear

Drive Type: 4WD

Operating Weight: 39000

Fuel Type: Diesel

Image Gallery

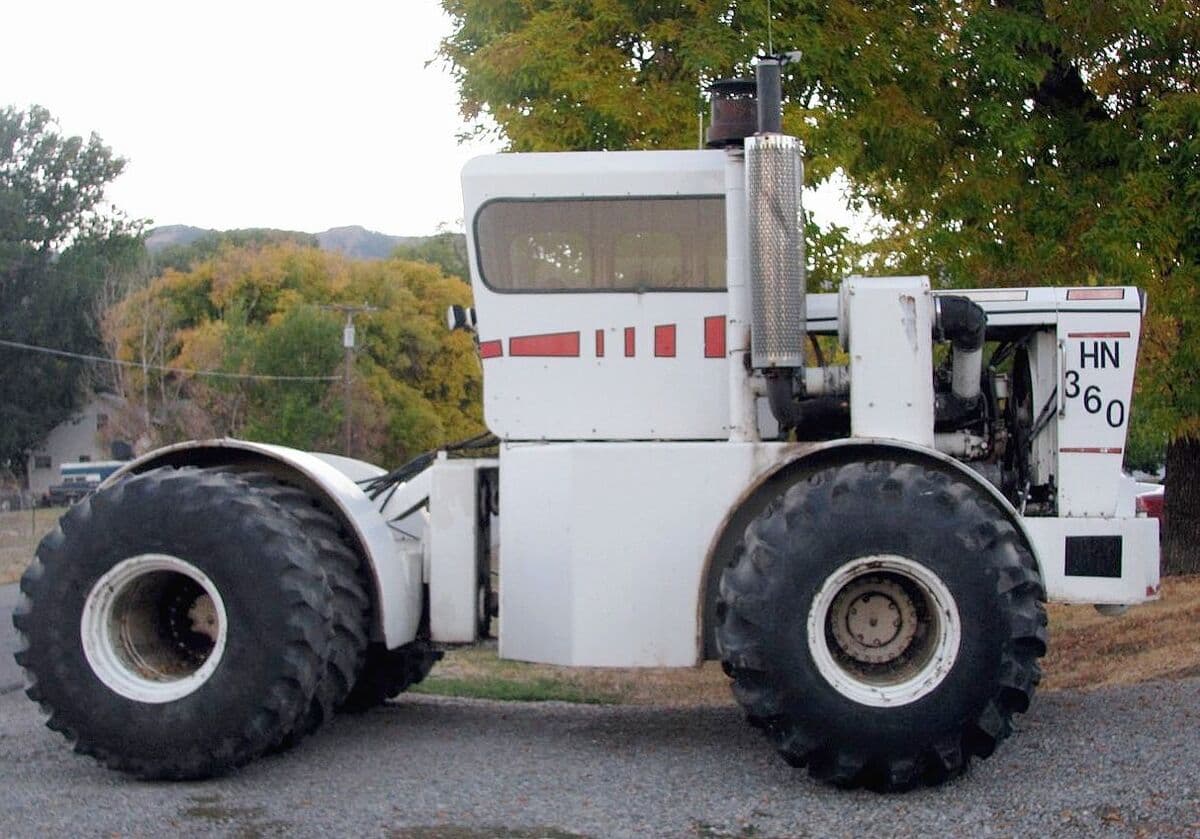

Big Bud HN360 Tractor

Big Bud HN360 vs. Similar Tractors

Power Output

Excellent

Greater than 96% of similar tractors.

Operating Weight

Above Average

Greater than 74% of similar tractors.

Technical Specifications

Engine

Manufacturer: Cummins
Model: NTA855
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged, aftercooled
Cylinders: 6
Displacement (ci): 855
Bore (in): 5.5
Stroke (in): 6
Rated RPM: 2100
Power Output (hp): 360

Transmission

Type: Gear
Forward Gears: 12
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 39000

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 articulated 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
