Big Bud HN320

Last Updated: September 2024

Overview

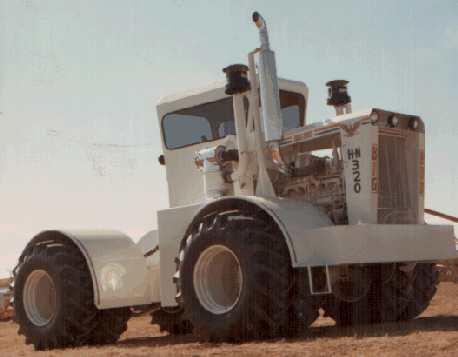

The Big Bud HN320 is a powerful utility tractor built for serious farm work. It has a strong 4x4 articulated chassis and four-wheel drive, making it great for tough jobs. The tractor uses a Cummins NT855 engine, which is a 6-cylinder diesel powerhouse. This engine is turbocharged and intercooled, giving it extra strength. It can produce 320 horsepower, which is very high compared to many other tractors.

The HN320 is a heavy machine, weighing 36,000 pounds. This weight helps it handle big tasks without tipping over. It has a gear transmission with 12 forward speeds and 2 reverse speeds, allowing farmers to choose the right pace for different jobs. The tractor uses agriculture tires on both front and back, perfect for farm fields. It also has hydrostatic power steering, making it easier to control despite its size. With its very high engine power and weight, the Big Bud HN320 is built to tackle the biggest farming challenges.
Show more...

Key Specifications

Category: Utility

Power Output: 320 hp (238.6 kW)

Transmission: Gear

Drive Type: 4WD

Operating Weight: 36000 lb (16329 kg)

Fuel Type: Diesel

Big Bud HN320 vs. Similar Tractors

Power Output

The Power Output for the Big Bud HN320 is Excellent. It is greater than 97% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the Big Bud HN320 is Excellent. It is greater than 98% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Big Bud HN320 is Excellent. It is greater than 97% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Big Bud HN320 is Below Average. It is greater than 15% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Cummins
Model
NT855
Cooling Type
Liquid
Cylinder Orientation
Inline
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement
855 ci (14.0 L)
Bore
5.50 in (139.7 mm)
Stroke
6.00 in (152.4 mm)
Rated RPM
2100
Power Output
320 hp (238.6 kW)

Transmission

Type
Gear
Forward Gears
12
Reverse Gears
2

Drivetrain

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Hydrostatic Power
