Big Bud 16V-747

Last Updated: June 2024

Overview

The Big Bud 16V-747 is a 4WD four-wheel drive tractor manufactured by Big Bud in Havre, Montana, USA in 1978. It's equipped with a 24.1 L (1,472.0 cu·in) V16 diesel engine and a power shift transmission with 6 forward and 1 reverse gears. The engine produced a remarkable 960 horsepower at 2,100 rpm of output power. The tractor also boasts articulated power steering and pneumatic brakes for effortless operation. The operator enjoys the comfort of a standard cab and a generous fuel tank capacity of 3785 liters.

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 960

Transmission: Power Shift

Drive Type: Four Wheel Drive (4WD)

Operating Weight: 95000

Fuel Type: Diesel

Image Gallery

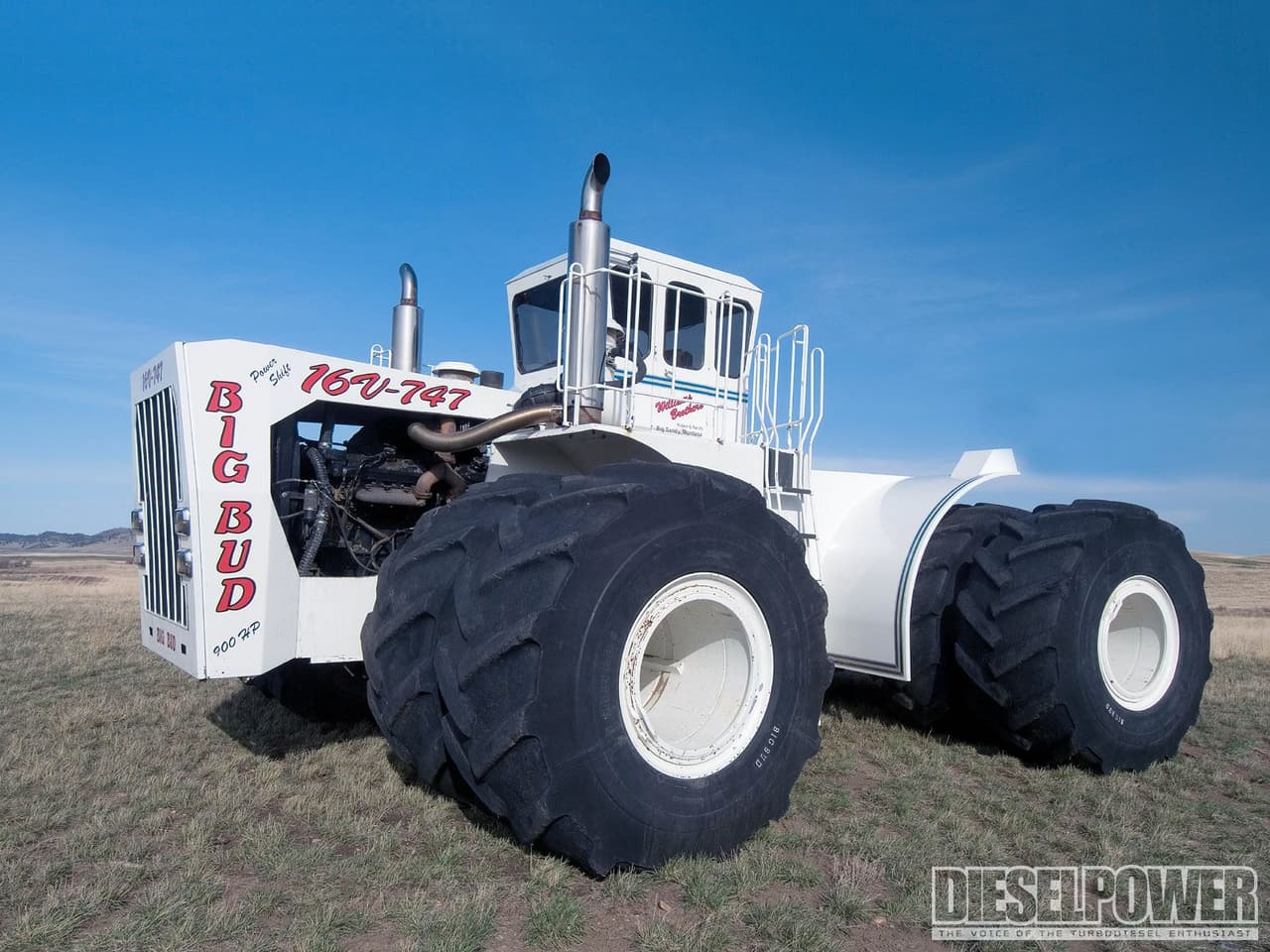

Big Bud 16V-747 Tractor

Big Bud 16V-747 vs. Similar Tractors

Power Output

Excellent

Greater than 98% of similar tractors.

Operating Weight

Above Average

Greater than 80% of similar tractors.

Technical Specifications

Engine

Manufacturer: Detroit Diesel
Model: 16V92T
Cooling Type: Liquid-Cooled
Cylinder Orientation: V (V16 configuation)
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged Intercooled
Cylinders: 16
Displacement (ci): 1472
Bore (in): 4.84
Stroke (in): 5
Rated RPM: 2100
Power Output (hp): 960

Transmission

Type: Power Shift
Forward Gears: 6
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): 341.7
Width (in): 250
Height (in): 167.7
Operating Weight (lb): 95000

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 articulated 4WD
Drive Type: Four Wheel Drive (4WD)
Steering Type: Articulated Power Steering
Coolant Capacity (qts): 60
Front Tire Diameter (in): 38
Front Tire Width (in): 35
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric Starter
Brake Type: Pneumatic
Hydraulic System Type: Load Sensing
