Belarus MTZ-80

Last Updated: June 2024

Overview

The Belarus MTZ-80 is a robust diesel tractor equipped with a liquid-cooled 4-cylinder MTZ D240 engine. It brings an impressive 80 horsepower and has a rated RPM of 2200. This model features an 18 forward and 4 reverse gear transmission system with dry disc clutch and power assisted steering for smooth and precise handling. The tractor has a substantial operating weight of 7,840 lbs and measures 150 inches in length, 77.6 inches in width, and 97.2 inches in height.

Key Specifications

Power Output: 80

Transmission: Dry disc clutch

Operating Weight: 7840

Fuel Type: Diesel

Image Gallery

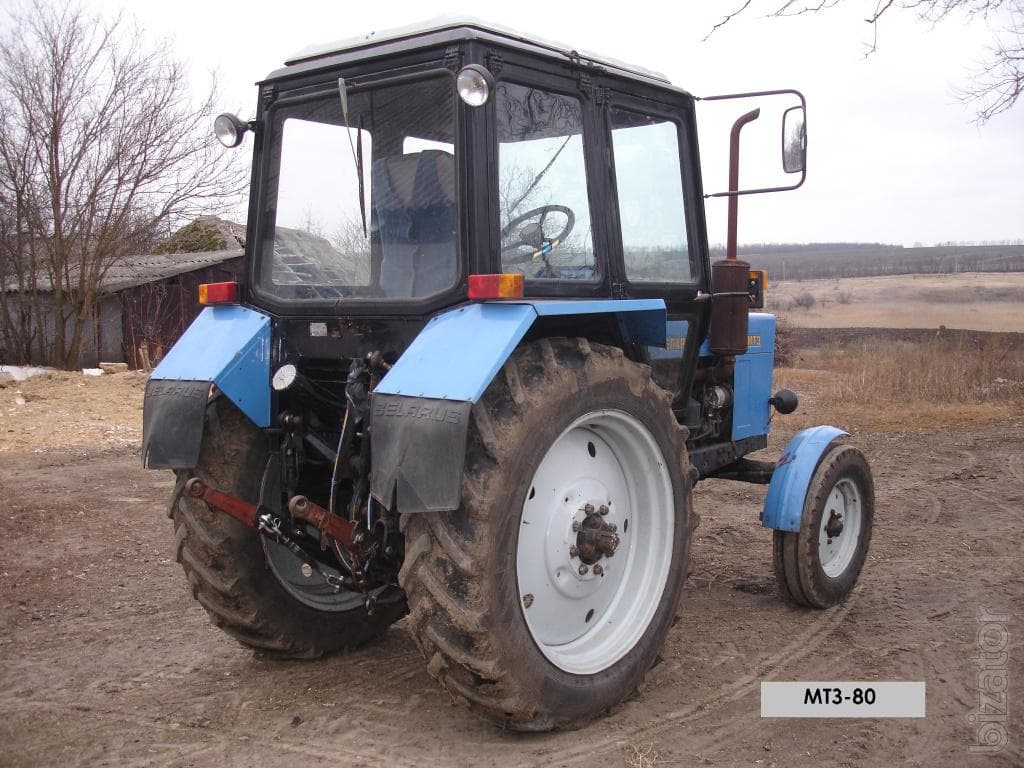

Belarus MTZ-80 Tractor

Technical Specifications

Engine

Manufacturer: Belarus
Model: MTZ D240
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 4
Displacement (ci): 289.8
Bore (in): 4.331
Stroke (in): 4.921
Rated RPM: 2200
Power Output (hp): 80

Transmission

Type: Dry disc clutch
Forward Gears: 18
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 150
Width (in): 77.6
Height (in): 97.2
Operating Weight (lb): 7840

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Power assist
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural)
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: 12 volts
Brake Type: -
Hydraulic System Type: -
