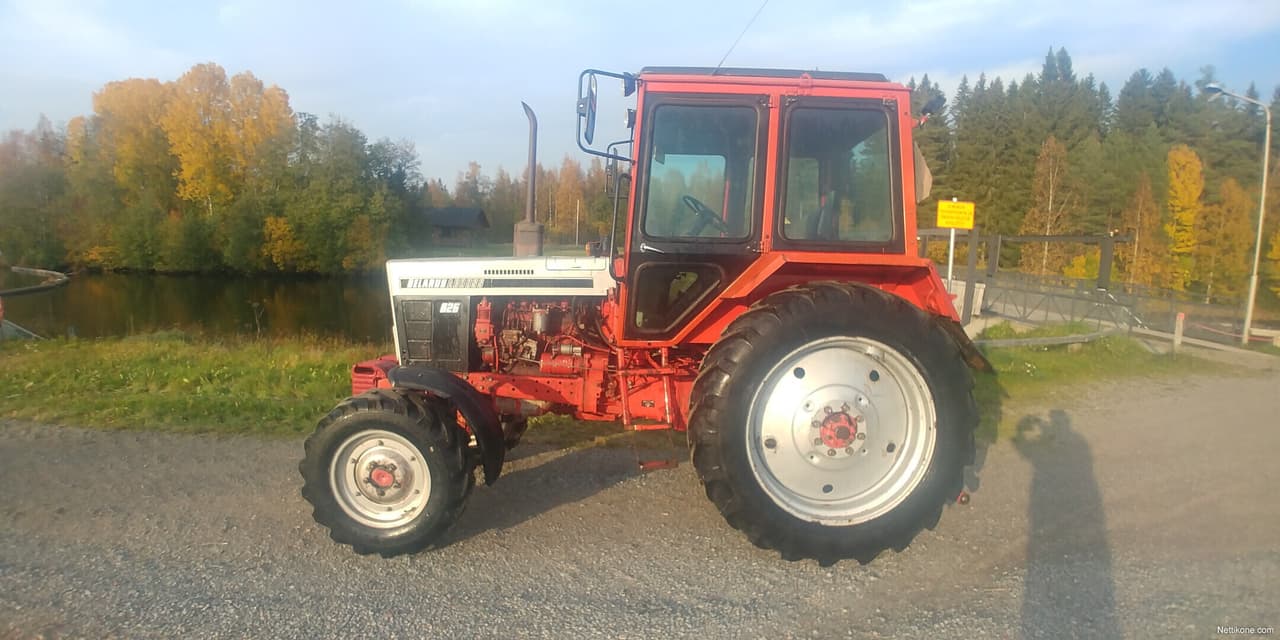

Belarus Agross 506

Last Updated: June 2024

Overview

The Belarus Agross 506 is a durable tractor manufactured by Belarus. It features a hydrostatic power steering system, making it responsive and easy to control. Its 4x2 2WD chassis and large tires make it suitable for a wide range of tasks. The Agross 506 boasts a powerful D60, 289.8 ci engine with four cylinders and an output of 65 hp. The tractor's engine operates at a rated RPM of 1950. A manual 9-speed transmission gives it the versatility it needs in different working conditions. The Agross 506 has a wheelbase of 96.5 inches and an operating weight of 7982 lbs, making it a sturdy and stable choice. Its overall length and height measures 159.1 inches and 110.6 inches, respectively.
Show more...

Key Specifications

Power Output: 65

Transmission: Manual

Drive Type: 2WD

Operating Weight: 7982

Image Gallery

Belarus Agross 506 Tractor Belarus Agross 506 Tractor Belarus Agross 506 Tractor Belarus Agross 506 Tractor Belarus Agross 506 Tractor Belarus Agross 506 Tractor Belarus Agross 506 Tractor Belarus Agross 506 Tractor Belarus Agross 506 Tractor Belarus Agross 506 Tractor

Technical Specifications

Engine

Manufacturer
-
Model
D60
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
-
Cylinders
4
Displacement (ci)
289.8
Bore (in)
4.331
Stroke (in)
4.921
Rated RPM
1950
Power Output (hp)
65

Transmission

Type
Manual
Forward Gears
9
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
159.1
Width (in)
-
Height (in)
110.6
Operating Weight (lb)
7982

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
