Belarus 925

Last Updated: July 2024

Overview

The Belarus 925 tractor is a robust and capable machine with a front-wheel assist feature. It features a 100 horsepower turbocharged diesel engine manufactured by Belarus with a displacement of 290 cubic inches. This strong engine has 4 cylinders, a liquid cooling system, and a compression ratio of 16.0 to 1. The manual transmission provides 18 forward and 4 reverse gears for excellent control while working in the field. The tractor operates using an open operator station type and has a hitch category II on the rear. It weighs 8674 lbs and is equipped with two 16.9R38 rear tires and two 13.6R20 front tires. The hydraulic system has a maximum force exertion of 3125 lbs, a pump delivery rate of 10.9 GPM at minimum pressure and rated engine speed, and a hydraulic power delivery of 11.5 HP at 2440 psi. Overall, this versatile tractor is a reliable worker that can handle a variety of tasks.

Key Specifications

Category: Agricultural

Power Output: 100

Transmission: Manual with 18 forward and 4 reverse gears

Operating Weight: 8674

Fuel Type: Diesel

Image Gallery

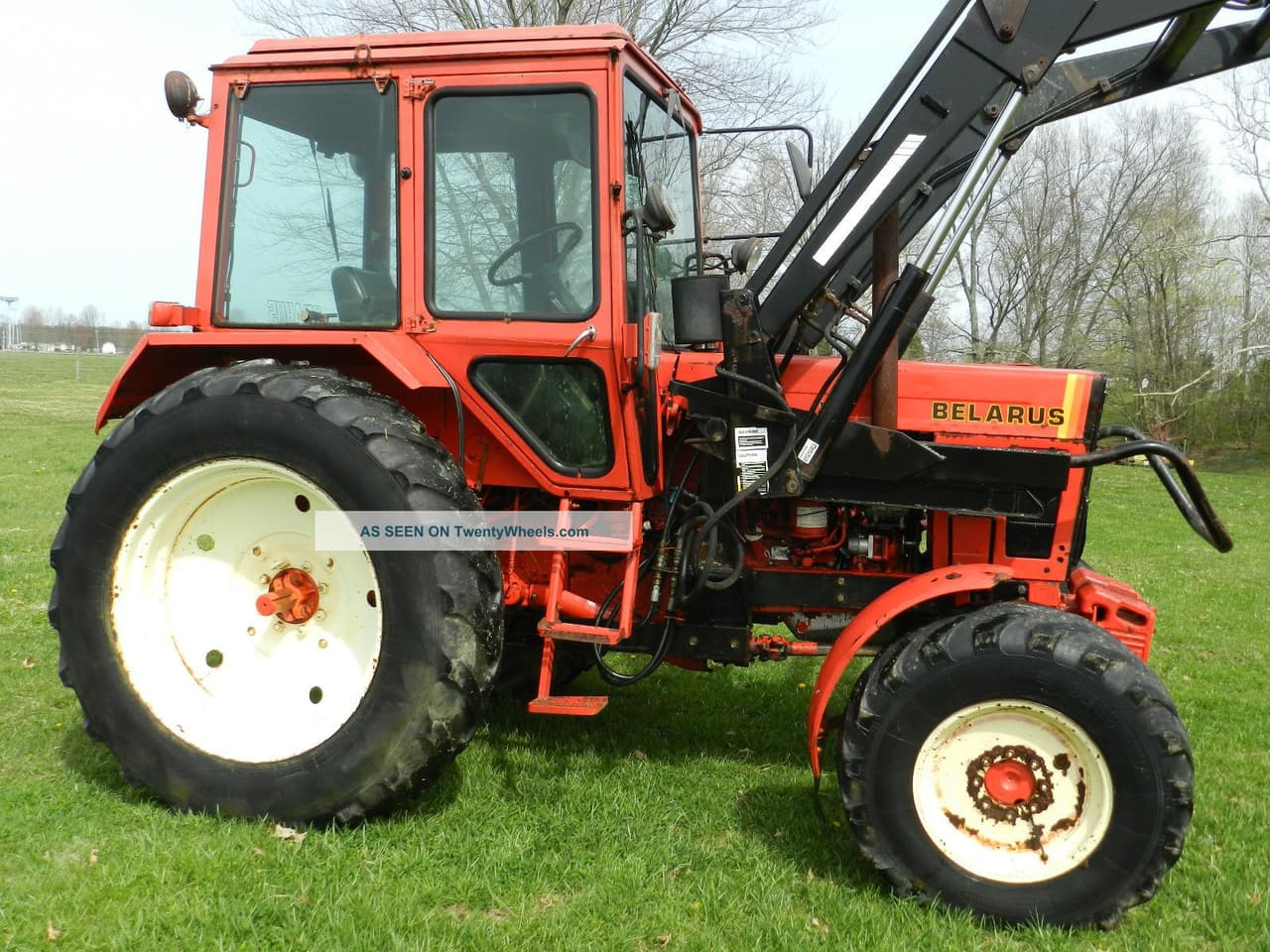

Belarus 925 Tractor

Belarus 925 vs. Similar Tractors

Power Output

Above Average

Greater than 77% of similar tractors.

Operating Weight

Average

Greater than 46% of similar tractors.

Technical Specifications

Engine

Manufacturer: Belarus
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 290
Bore (in): 4.33
Stroke (in): 4.92
Rated RPM: -
Power Output (hp): 100

Transmission

Type: Manual with 18 forward and 4 reverse gears
Forward Gears: 18
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 8674

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 with front-wheel assist
Drive Type: -
Steering Type: -
Coolant Capacity (qts): 21.08
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: -
Hitch Category: II
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: -
Brake Type: -
Hydraulic System Type: -

Test Results

Nebraska Tractor Test Laboratory - Test Date: September 12-23, 1996

Maximum Torque and Performance

Maximum Torque: 270 lb.-ft. (366 Nm) at 1600 rpm
Torque Rise: 22.5%
RPM at Maximum Torque Rise: 1800 rpm with a 17% rise in engine torque

Power Take-Off Performance

Maximum PTO Power: 92.37 HP (68.88 kW) at 2200 rpm
Fuel Consumption at Rated Engine Speed: 5.40 Gal/hr (20.45 l/h) with a fuel efficiency of 0.410 lb/hp.hr (0.249 kg/kW.h)

Drawbar Performance

Maximum Power in 9th Gear: 85.40 HP (63.68 kW) with a drawbar pull of 5544 lbs (24.66 kN)
Speed at Maximum Power in 9th Gear: 5.78 mph (9.30 km/h)
Fuel Consumption at Maximum Power (9th Gear): 0.447 lb/hp.hr (0.272 kg/kW.h) with a fuel efficiency of 15.69 Hp.hr/gal (3.09 kW.h/l)

Hydraulic Performance

Maximum Force Exerted through Whole Range: 3125 lbs
Pump Delivery Rate at Minimum Pressure and Rated Engine Speed: 10.9 GPM (41.3 l/min)
Hydraulic Power Delivery: 11.5 HP (8.6 kW) at a delivery pressure of 2440 psi (168 bar)

General Information

Engine Model: MTZ Diesel D-243
Engine Type: Four-cylinder vertical with turbocharger, 290 cu in (4750 ml) displacement
Transmission: 18-speed, front-wheel assist
Fuel Type: No. 2 Diesel

Nebraska Tractor Test Lab.(1996). Test 1716: Belarus 900, 905, 920 and 925 Diesel 18-Speed. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2025
