Belarus 570

Last Updated: June 2024

Overview

The Belarus 570 tractor offers a robust, four-cylinder D-242 diesel engine by Belarus. This engine is liquid-cooled, displacing 290 cubic inches. The transmission is manual with 18 forward gears and four reverse, allowing for a range of speeds. The chassis configuration is 4x2 2WD, suggesting it is two-wheel drive. The tractor is quite sizeable with a length of 150.4 inches, a width of 77.6 inches, and a height of 109.4 inches to top of the cab. It has a rear hitch of Category II type and uses agricultural tires at the front and rear. The model operates at a weight of 8500 lbs.

Key Specifications

Transmission: Manual

Drive Type: 2WD

Operating Weight: 8500

Fuel Type: Diesel

Image Gallery

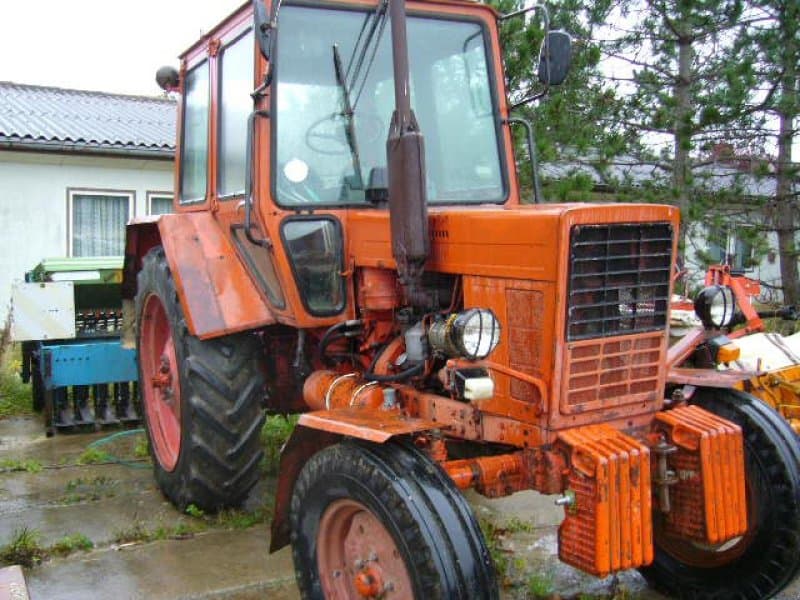

Belarus 570 Tractor

Technical Specifications

Engine

Manufacturer: Belarus
Model: D-242
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 4
Displacement (ci): 290
Bore (in): 4.33
Stroke (in): 4.92
Rated RPM: 1800
Power Output (hp): -

Transmission

Type: Manual
Forward Gears: 18
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 150.4
Width (in): 77.6
Height (in): 109.4
Operating Weight (lb): 8500

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): 21.08
Front Tire Diameter (in): 20
Front Tire Width (in): 7.5
Rear Tire Diameter (in): 38
Rear Tire Width (in): 15.5
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Category II
Hitch Category: II
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: -
Brake Type: -
Hydraulic System Type: Open
