Belarus 5460

Last Updated: June 2024

Overview

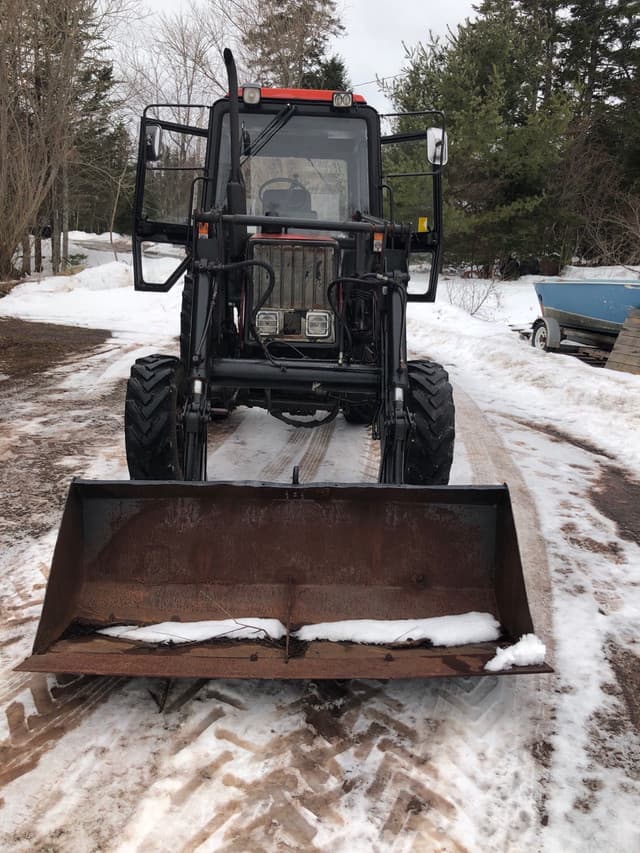

The Belarus 5460 is a robust tractor designed for various agricultural tasks. With a 4x4 MFWD 4WD chassis, this model offers excellent stability and traction on various terrains. It includes a hydrostatic power steering system, ensuring easy control and maneuverability. The Belarus 5460 operates on a Belarus D242 engine - a 4-cylinder, liquid-cooled, diesel engine with direct injection. An engine displacement of 289.9 ci and a rated RPM of 1800 showcase its considerable power. The transmission system features both a 14-speed partially synchronized and a shuttle system — with up to 14 gears forward and 8 gears in reverse. The tractor also comes with an open center hydraulic system, and the hitch system is a Category II, generally positioned at the rear.
Show more...

Key Specifications

Transmission: partially synchronized / shuttle

Drive Type: 4WD

Fuel Type: diesel

Technical Specifications

Engine

Manufacturer
Belarus
Model
D242
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
direct injection
Cylinders
4
Displacement (ci)
289.9
Bore (in)
4.33
Stroke (in)
4.92
Rated RPM
1800
Power Output (hp)
-

Transmission

Type
partially synchronized / shuttle
Forward Gears
14-Sep
Reverse Gears
4-Aug
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
electric
Brake Type
-
Hydraulic System Type
open center
