Belarus 5440

Last Updated: June 2024

Overview

The Belarus 5440 tractor is a robust machine that comes with a 4x4 MFWD 4WD chassis and a hydrostatic power steering system for handling challenging terrains. It runs on a diesel-powered 3-cylinder air-cooled Belarus engine with a displacement of 190 cubic inches and an engine speed rating of 2000 RPM. The 5440 model is built for heavy loads, sporting a weight range of 4750 to 4850 pounds. It features a 6-speed shuttle transmission for smooth operations. The 8.3-inch wide front tire and 12.4-inch wide rear tire provide stability during operation. With its sizeable dimensions, it stands tall at 97.7 inches with Roll-Over Protective Structure (ROPS) and 99.7 inches with a cab, while its total length and width are 137 inches and 65 inches, respectively.

Key Specifications

Transmission: 6-speed shuttle

Drive Type: 4WD

Operating Weight: 4750 to 4850

Fuel Type: Diesel

Image Gallery

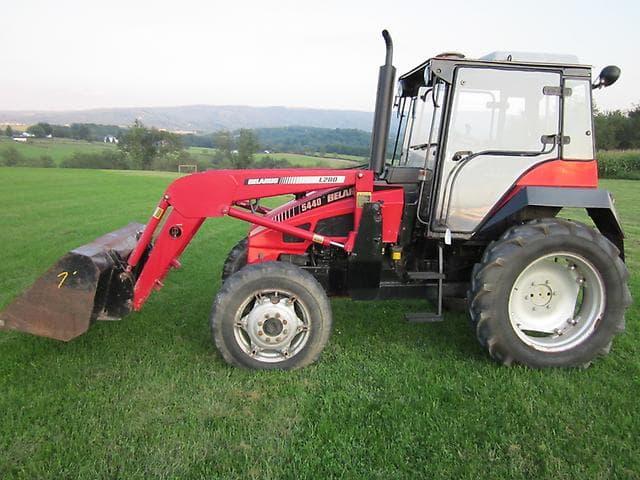

Belarus 5440 Tractor

Technical Specifications

Engine

Manufacturer: Belarus
Model: -
Cooling Type: Air-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 190
Bore (in): -
Stroke (in): -
Rated RPM: 2000
Power Output (hp): -

Transmission

Type: 6-speed shuttle
Forward Gears: 6
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 137
Width (in): 65
Height (in): 97.7 (with ROPS), 99.7 (with cab)
Operating Weight (lb): 4750 to 4850

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): 8.3
Rear Tire Diameter (in): -
Rear Tire Width (in): 12.4
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: -
Hitch Category: II
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center
