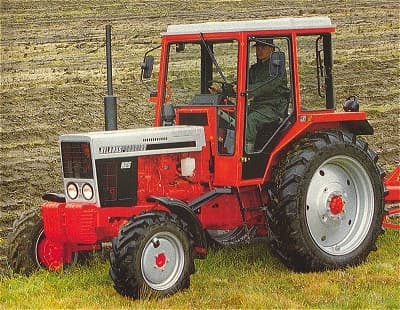

Belarus 5380

Last Updated: June 2024

Overview

The Belarus 5380 is a 4WD tractor, powered by a turbocharged diesel engine offering a displacement of 289.9 ci. The engine, a Belarus D243T model, is liquid-cooled and pairs with a hydrostatic power steering system. This tractor features a partially synchronized 14-speed transmission system with shuttle capabilities, making it versatile for various agricultural tasks. From a structural perspective, this Belarus offering is considerable in size, evidenced by its 155.5-inch length, 77.6-inch width, and 109-inch height (with the cab installed). Further adding to the tractor's robust nature is its hefty 8124 lbs operating weight. Standard tires for the 5380 model are agricultural - Front: 13.6x20, Rear: 18.4x34.
Show more...

Key Specifications

Transmission: Partially Synchronized (14-speed with shuttle)

Drive Type: 4WD

Operating Weight: 8124

Fuel Type: Diesel (Turbocharged)

Technical Specifications

Engine

Manufacturer
Belarus
Model
D243T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel (Turbocharged)
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
289.9
Bore (in)
4.33
Stroke (in)
4.92
Rated RPM
2200
Power Output (hp)
-

Transmission

Type
Partially Synchronized (14-speed with shuttle)
Forward Gears
9
Reverse Gears
9
Total Gears
-

Dimensions

Length (in)
155.5
Width (in)
77.6
Height (in)
109.0 (with cab), 65.6 (hood)
Operating Weight (lb)
8124

Power Take-Off (PTO)

PTO Type
Live Open Center
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
20.1
Front Tire Diameter (in)
20
Front Tire Width (in)
13.6
Rear Tire Diameter (in)
34
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural (Ag)
Manufacture - End Year
-
Hitch Type
II
Hitch Category
Category II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (24 volts)
Brake Type
-
Hydraulic System Type
Live Open Center
