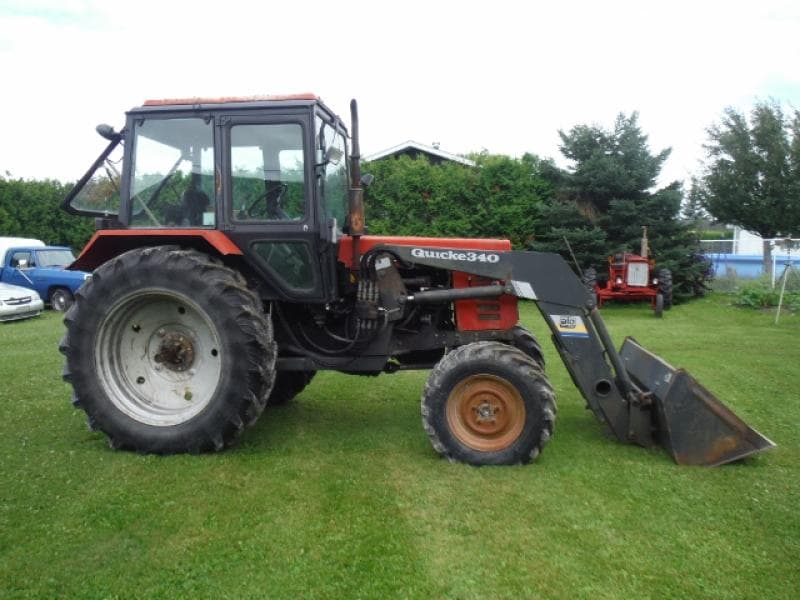

Belarus 5160

Last Updated: June 2024

Overview

The Belarus 5160 is a tractor model manufactured by Belarus. It has a 2WD drive type and uses a hydrostatic power steering system. Featuring an 18-speed gearbox, it has a total of 18 forward gears and 4 reverse gears. Under the hood, it is powered by a liquid-cooled, 4-cylinder D242 diesel engine, supplied by Belarus itself. Each cylinder has a bore of 4.33 inches and a stroke of 4.92 inches, amounting to a total engine displacement of 289.9 cubic inches. The tractor engine operates at a maximum of 1800 RPM. The Belarus 5160 uses Ag-type tires, with the front tire width standing at 9 inches and the rear tire width at 15.5 inches. With a length of 154.7 inches and width of 77.5 inches, the tractor can carry a weight ranging from 6710 to 7870 pounds, depending on configuration.
Show more...

Key Specifications

Transmission: 18-speed

Drive Type: 2WD

Operating Weight: 6710 to 7870 (depending on configuration)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Belarus
Model
D242
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct Injection
Cylinders
4
Displacement (ci)
289.9
Bore (in)
4.33
Stroke (in)
4.92
Rated RPM
1800
Power Output (hp)
-

Transmission

Type
18-speed
Forward Gears
18
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
154.7
Width (in)
77.5
Height (in)
108.6 (cab)
Operating Weight (lb)
6710 to 7870 (depending on configuration)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
20.1
Front Tire Diameter (in)
-
Front Tire Width (in)
9
Rear Tire Diameter (in)
-
Rear Tire Width (in)
15.5
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Optional Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
live open center
