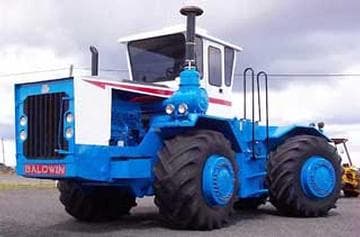

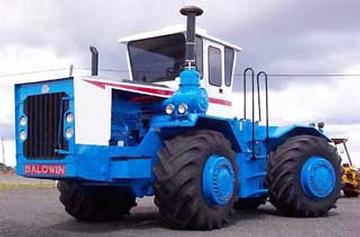

Baldwin DP525

Last Updated: June 2024

Overview

The Baldwin DP525 tractor is a formidable machine with a powerful engine and advanced features. It is powered by a Cummins KTA 1150 Diesel engine, boasting 6 cylinders and a displacement of 1150 cubic inches. The engine delivers a substantial power output of 525 horsepower. Baldwin has employed a liquid-cooling system to manage the engine temperature and ensure optimal performance. The DP525 comes with an articulated power steering and a 4x4 articulated 4WD system, making it agile and adaptable to challenging terrains. Its power shift transmission, provided by Allison, demonstrates the tractor's advanced engineering and superior performance. Despite the humongous power, the machine starts effortlessly thanks to an electric starter.
Show more...

Key Specifications

Power Output: 525

Transmission: Power shift

Drive Type: 4WD

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Cummins
Model
KTA 1150
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
1150
Bore (in)
6.25
Stroke (in)
6.25
Rated RPM
-
Power Output (hp)
525

Transmission

Type
Power shift
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Articulated power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
