Apollo 254

Last Updated: June 2024

Overview

The Apollo 254 is a reliable compact utility tractor ideal for various tasks. Manufactured by Apollo and powered by a 3-cylinder diesel engine developed by Changfa, this tractor delivers a gross power of 25 hp. The 4WD tractor possesses a 4x4 MFWD chassis and is equipped with power steering for efficient handling. Notably, it has a 9-speed gear transmission, and a dry disc clutch, giving the operator multiple driving options to suit different needs. The Apollo 254 is a bit larger than standard compact tractors, measuring a length of 153.5 inches, width of 56.7 inches, and a height of 91.3 inches. The tractor comes standard with agricultural tires, with sizes of 6.00x16 at the front and 9.5x24 at the rear.

Key Specifications

Category: Utility

Power Output: 25

Transmission: Gear

Drive Type: 4WD

Fuel Type: Diesel

Image Gallery

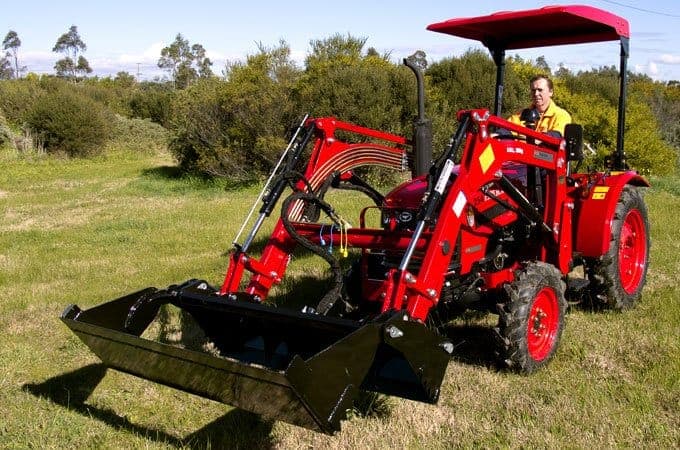

Apollo 254 Tractor

Apollo 254 vs. Similar Tractors

Power Output

Below Average

Greater than 18% of similar tractors.

Technical Specifications

Engine

Manufacturer: Changfa
Model: CF3B25T
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 93.5
Bore (in): -
Stroke (in): -
Rated RPM: 2400
Power Output (hp): 25

Transmission

Type: Gear
Forward Gears: 9
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 153.5
Width (in): 56.7
Height (in): 91.3
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 16
Front Tire Width (in): 6
Rear Tire Diameter (in): 24
Rear Tire Width (in): 9.5
Front/Rear Rim Diameter (in): -
Tire Type: Standard tires (ag)
Manufacture - End Year: -
Hitch Type: Rear Type: I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: ROPS
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
