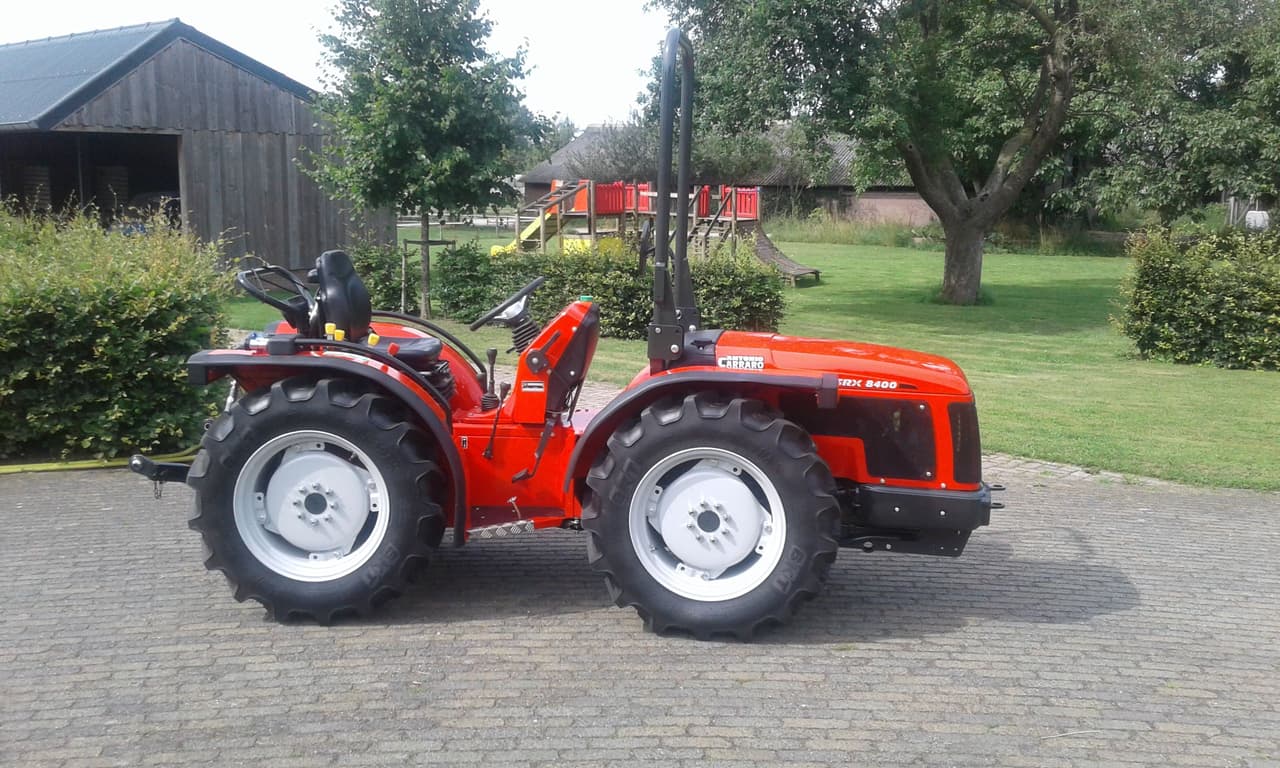

Antonio Carraro SX 9400S

Last Updated: June 2024

Overview

The SX 9400S is a utility tractor manufactured by Antonio Carraro. It boasts a 4x4 articulated 4WD chassis coupled with a 16-speed forward and reverse manual transmission. The diesel engine is a four-cylinder, turbocharged model made by VM Motori with a displacement of 181.2 cubic inches, running at a rated RPM of 2600 and offering 87 horsepower. The SX 9400S has dimensions of a 136.4-inch length and a 41.7-inch width, with the height varying depending on the operator station type. The tractor's weight is around 4707 lbs.
Show more...

Key Specifications

Category: Utility

Power Output: 87

Transmission: Manual

Drive Type: 4WD

Operating Weight: 4707

Fuel Type: Diesel

Image Gallery

Antonio Carraro SX 9400S Tractor Antonio Carraro SX 9400S Tractor Antonio Carraro SX 9400S Tractor Antonio Carraro SX 9400S Tractor Antonio Carraro SX 9400S Tractor Antonio Carraro SX 9400S Tractor

Antonio Carraro SX 9400S vs. Similar Tractors

Power Output
Above Average
Greater than 75% of similar tractors.
Operating Weight
Average
Greater than 42% of similar tractors.

Technical Specifications

Engine

Manufacturer
VM Motori
Model
D754
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
181.2
Bore (in)
3.7
Stroke (in)
4.213
Rated RPM
2600
Power Output (hp)
87

Transmission

Type
Manual
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
93.1 with ROPS or 90.4 with cab
Operating Weight (lb)
4707

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Hydraulic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category II/I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Either ROPS or Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
