Allis Chalmers D15 Series I

Last Updated: June 2024

Overview

The Allis Chalmers D15 Series I is a 2WD, row-crop tractor from the D series, manufactured by Allis Chalmers in West Allis, Wisconsin, USA from 1960 to 1963. Available with either a gasoline or a diesel engine configuration, this model has a displacement of 149.0 cu·in for the gasoline/LP-gas engine and 175.0 cu·in for the diesel engine. It offers different transmission options, including an 8-forward and 2-reverse gear partial power shift, or a 4-forward and 4-reverse gear shuttle transmission. The tractor features manual or power optional steering and expanding shoe brakes. It is fitted with an open operator station and has a 60.6 L fuel tank capacity for gas and diesel, while the LP-gas version has a 59.6 L tank.
Show more...

Key Specifications

Category: Row Crop

Power Output: 40

Transmission: Partial Power Shift / Shuttle

Drive Type: 2WD

Operating Weight: 3,990 (Gasoline) / 4,220 (Diesel)

Fuel Type: Gasoline / Diesel

Image Gallery

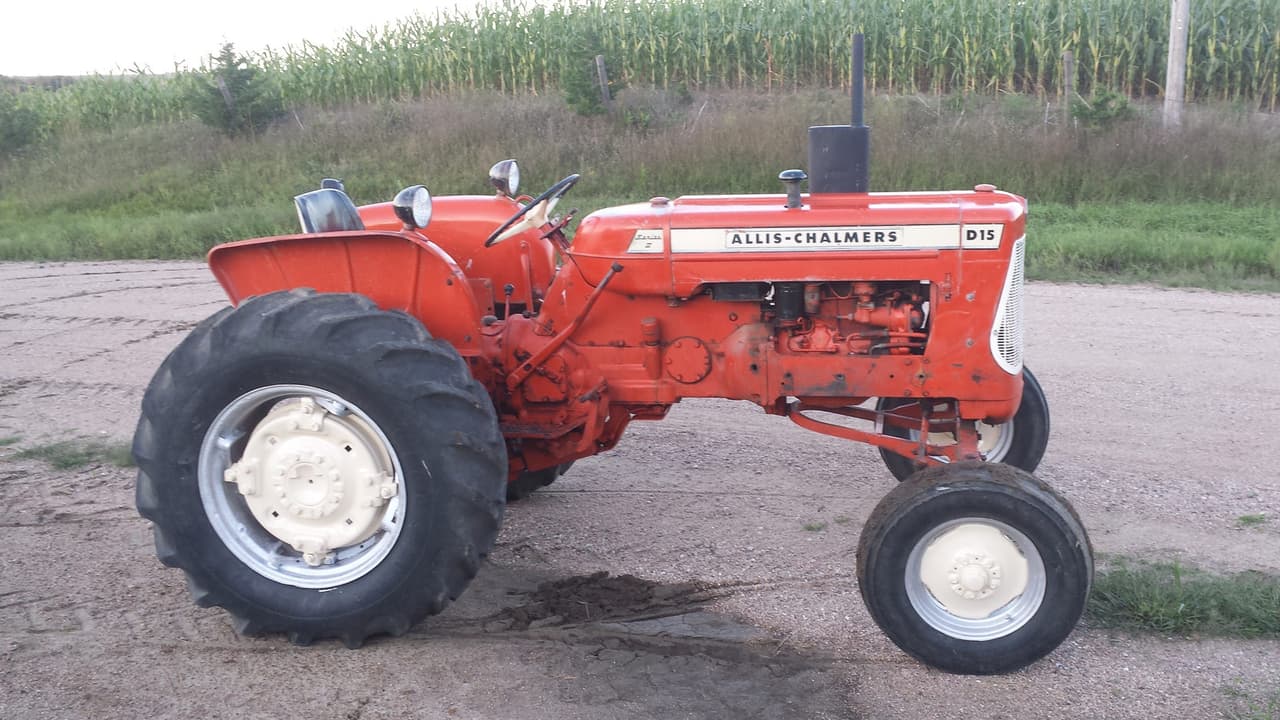

Allis Chalmers D15 Series I Tractor Allis Chalmers D15 Series I Tractor Allis Chalmers D15 Series I Tractor Allis Chalmers D15 Series I Tractor Allis Chalmers D15 Series I Tractor Allis Chalmers D15 Series I Tractor Allis Chalmers D15 Series I Tractor Allis Chalmers D15 Series I Tractor

Allis Chalmers D15 Series I vs. Similar Tractors

Power Output
Poor
Greater than 3% of similar tractors.

Technical Specifications

Engine

Manufacturer
Allis Chalmers
Model
Allis Chalmers / Allis Chalmers D-175
Cooling Type
Liquid-Cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Gasoline / Diesel
Induction Type
Natural Aspiration
Cylinders
4
Displacement (ci)
149 (Gasoline) / 175 (Diesel)
Bore (in)
3.5 (Gasoline) / 3.54 (Diesel)
Stroke (in)
3.86 (Gasoline) / 4.37 (Diesel)
Rated RPM
2,000
Power Output (hp)
40

Transmission

Type
Partial Power Shift / Shuttle
Forward Gears
8 (Power Shift), 4 (Shuttle)
Reverse Gears
2 (Power Shift), 4 (Shuttle)
Total Gears
-

Dimensions

Length (in)
130.3
Width (in)
66.9
Height (in)
79.9
Operating Weight (lb)
3,990 (Gasoline) / 4,220 (Diesel)

Power Take-Off (PTO)

PTO Type
Live
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual or Power (option)
Coolant Capacity (qts)
11
Front Tire Diameter (in)
16 for Ag tires
Front Tire Width (in)
5.5 for Ag tires
Rear Tire Diameter (in)
26 for Ag tires
Rear Tire Width (in)
12.4 for Ag tires
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural (Ag)
Manufacture - End Year
1963
Hitch Type
Snap-Coupler
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
Expanding shoe
Hydraulic System Type
-
