Allis Chalmers 8070

Last Updated: June 2024

Overview

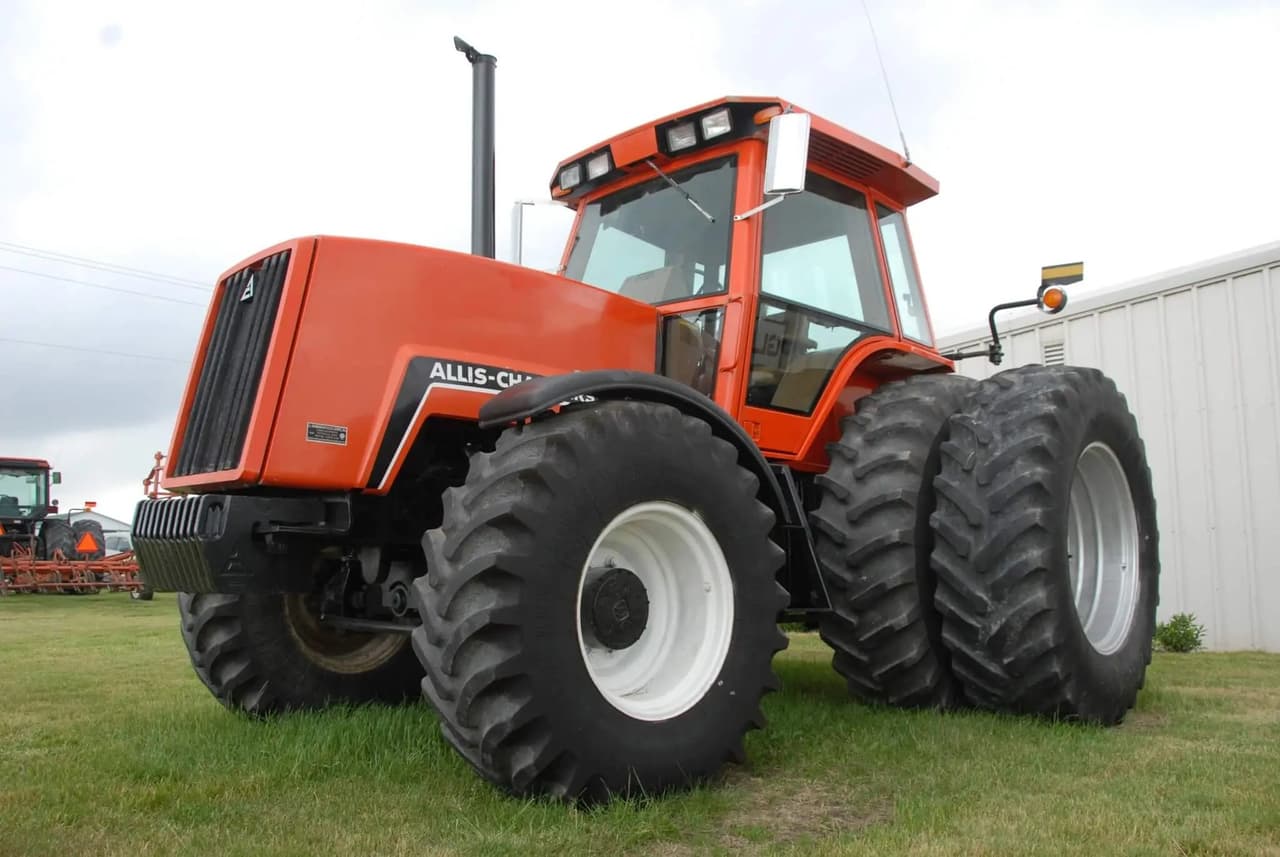

The Allis Chalmers 8070 is a 2WD or 4WD row-crop tractor, manufactured from 1982 to 1985, featuring a turbocharged and intercooled diesel engine with a displacement of 426 cubic inches, producing 170 horsepower at 2400 RPM. It's equipped with hydrostatic power steering, a choice between partial power shift or power shift transmissions, and a three-point hitch with a lift capacity of 8,200 lbs. The tractor's design includes the Acousta-Cab with amenities such as heat and air-conditioning for operator comfort.
Show more...

Key Specifications

Category: Row Crop

Power Output: 170

Transmission: Partial Power Shift and Power Shift

Drive Type: 2WD/4WD

Operating Weight: 16,850 (2WD duals)

Fuel Type: Diesel

Image Gallery

Allis Chalmers 8070 Tractor Allis Chalmers 8070 Tractor Allis Chalmers 8070 Tractor Allis Chalmers 8070 Tractor Allis Chalmers 8070 Tractor Allis Chalmers 8070 Tractor Allis Chalmers 8070 Tractor Allis Chalmers 8070 Tractor

Allis Chalmers 8070 vs. Similar Tractors

Power Output
Average
Greater than 63% of similar tractors.
Hitch Capacity
Below Average
Greater than 11% of similar tractors.
Operating Weight
Poor
Greater than 10% of similar tractors.

Technical Specifications

Engine

Manufacturer
Allis Chalmers
Model
670I
Cooling Type
Liquid-Cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
6
Displacement (ci)
426
Bore (in)
4.25
Stroke (in)
5
Rated RPM
2400
Power Output (hp)
170

Transmission

Type
Partial Power Shift and Power Shift
Forward Gears
20 (Partial Power Shift), 12 (Power Shift)
Reverse Gears
4 (Partial Power Shift), 2 (Power Shift)
Total Gears
-

Dimensions

Length (in)
187
Width (in)
95.5
Height (in)
Height to Hood: 70 | Height to Cab: 116 | Height to Exhaust: 114
Operating Weight (lb)
16,850 (2WD duals)

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
1,000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
2WD/4WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
36
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
1985
Hitch Type
Three-Point Hitch
Hitch Category
III/II
Hitch Position
Rear
Hitch Capacity (lb)
8,200 lbs
Operator Station Type
Acousta-Cab with heat and air-conditioning
Starter Type
Electric
Brake Type
Differential hydraulic wet discs
Hydraulic System Type
Closed-center load-sensitive
