Allis Chalmers 7050

Last Updated: July 2024

Overview

The Allis Chalmers 7050 is an American-made row-crop tractor produced in West Allis, Wisconsin from 1973 to 1974. It features a liquid-cooled, six-cylinder Allis Chalmers diesel engine with a turbocharged intercooled system, yielding 156.49 horsepower at 2300 RPM according to Nebraska Tractor Test results. The tractor implements a selective gear fixed ratio transmission with partial range operator-controlled power shifting, offering 20 forward and 4 reverse gears. Operating with 4x2 2WD, it's equipped with an independent rear power take-off yielding speeds of 540 or 1000 RPM. The hydraulic system uses a direct engine drive control system. For operator comfort, it provides an open station or an optional cab. The three-point hitch system is rated for categories II and III. The tractor's operating weight with ballast is 19,530 lbs, demonstrating its robust build for various agricultural applications.
Show more...

Key Specifications

Category: Row Crop

Power Output: 156.49

Transmission: Selective gear fixed ratio with partial range operator-controlled power shifting

Drive Type: 2WD

Operating Weight: 19530

Fuel Type: Diesel

Image Gallery

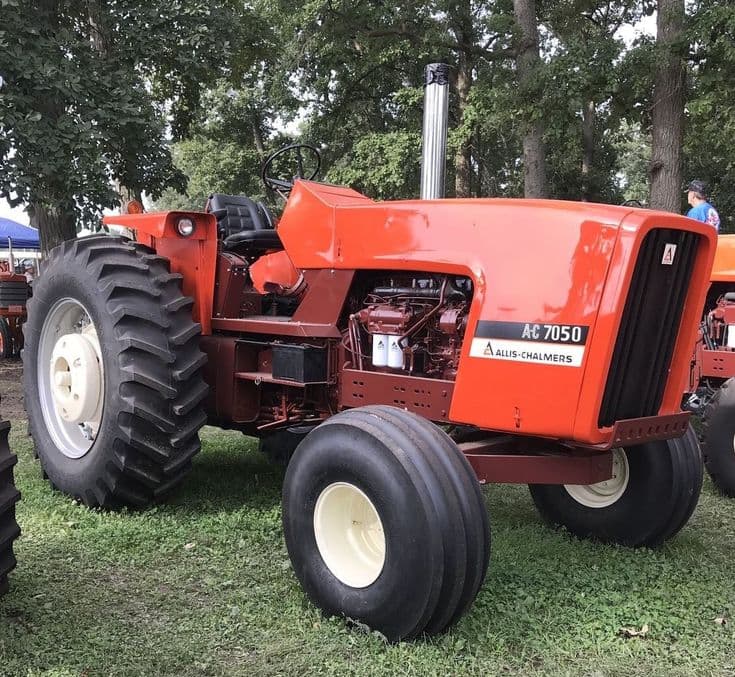

Allis Chalmers 7050 Tractor Allis Chalmers 7050 Tractor Allis Chalmers 7050 Tractor Allis Chalmers 7050 Tractor Allis Chalmers 7050 Tractor Allis Chalmers 7050 Tractor Allis Chalmers 7050 Tractor Allis Chalmers 7050 Tractor

Allis Chalmers 7050 vs. Similar Tractors

Power Output
Average
Greater than 64% of similar tractors.
Operating Weight
Poor
Greater than 8% of similar tractors.

Technical Specifications

Engine

Manufacturer
Allis Chalmers
Model
Allis Chalmers
Cooling Type
Liquid-Cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
6
Displacement (ci)
426
Bore (in)
4.25
Stroke (in)
5
Rated RPM
2300
Power Output (hp)
156.49

Transmission

Type
Selective gear fixed ratio with partial range operator-controlled power shifting
Forward Gears
20
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
163
Width (in)
95.5
Height (in)
116
Operating Weight (lb)
19530

Power Take-Off (PTO)

PTO Type
Independent Rear PTO
PTO Speed 1 (rpm)
1000
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1974
Hitch Type
Three-Point Hitch
Hitch Category
III/II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open operator station or Cab (optional)
Starter Type
Electric
Brake Type
Differential Hydraulic Wet Discs
Hydraulic System Type
Direct engine drive

Test Results

Nebraska Tractor Test Laboratory - Test Date: March 14 to March 30, 1973

Maximum Power and Fuel Consumption

  • Maximum Power: 157.14 HP at 2301 rpm
  • Fuel Consumption at Maximum Power: 9.827 Gal/hr with a fuel efficiency of 0.434 lb/hp.hr
  • Fuel Type: No. 2 Diesel with Cetane No. 50.1

Drawbar Performance

  • Power at Rated Engine Speed (9th Gear): 135.11 HP with a drawbar pull of 9265 lbs and a speed of 5.47 mph
  • Fuel Consumption at Rated Speed: 0.432 lb/hp.hr with a fuel efficiency of 16.04 Hp.hr/gal

Torque and Engine Performance

  • Maximum Torque: Not explicitly mentioned, but the engine's power characteristics indicate efficient performance under load.
  • Engine: 6-cylinder vertical diesel with turbocharger and inter-cooler.

Hydraulic Performance

  • Hydraulic Control System: Direct engine drive
  • Transmission: Selective gear fixed ratio with partial range operator-controlled power shifting.

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 16.04 Hp.hr/gal
  • Fuel Consumption: 9.762 Gal/hr at 2253 rpm



Nebraska Tractor Test Lab. (1973). Test 1120: Allis-Chalmers 7050 Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/1443
