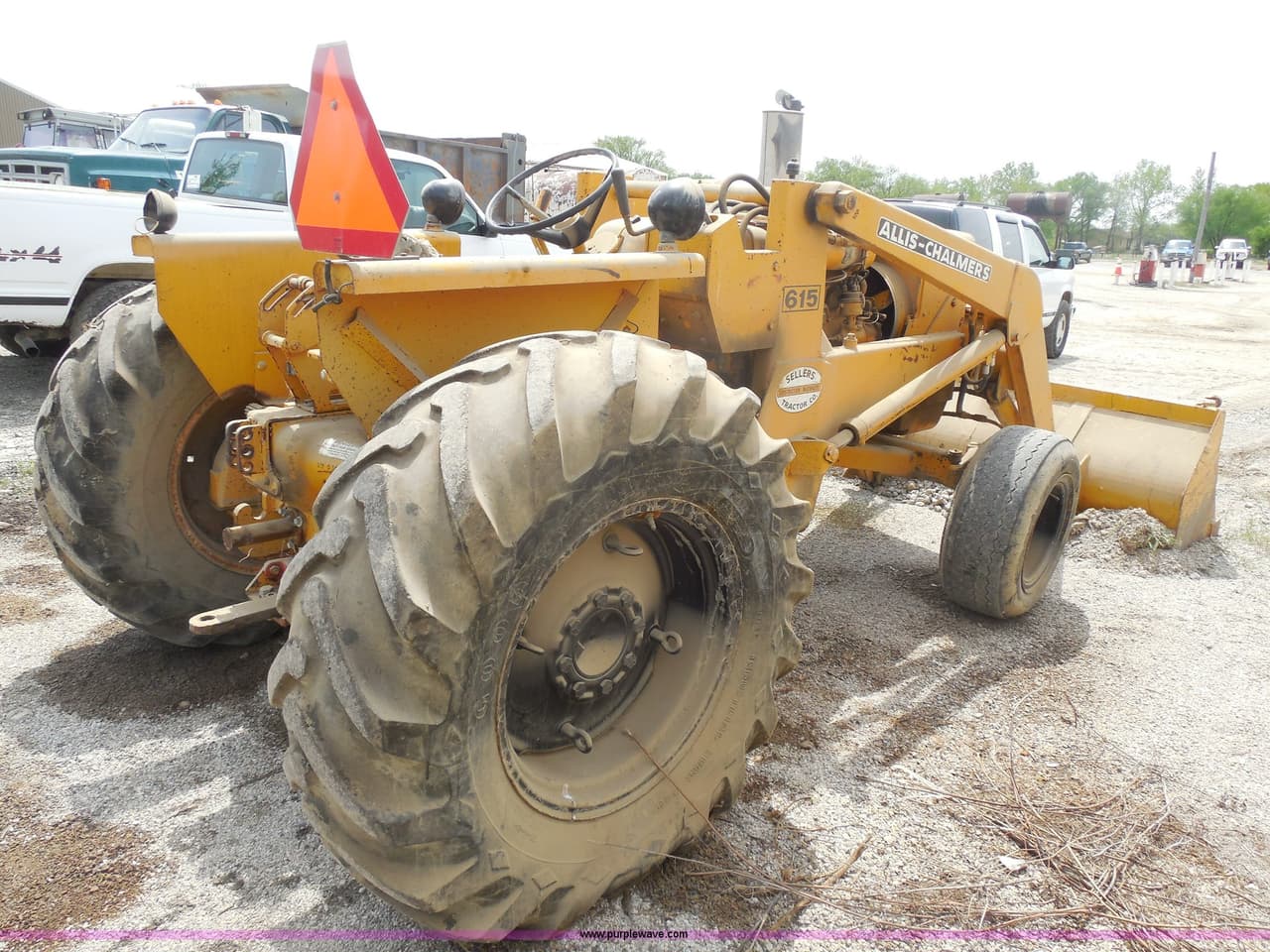

Allis Chalmers 615

Last Updated: June 2024

Overview

The Allis Chalmers 615, produced from 1966 to 1974 in Topeka, Kansas, is a versatile 2WD backhoe loader tractor that came with a selection of engines, including a 2.6L gasoline engine and two diesel engines of 2.9L and 3.3L. It featured either a power shuttle transmission with an equal number of 4 forward and reverse gears, or a gear type with a dry disc clutch transmission with 4 forward gears and 1 reverse gear. Key features include power steering, mechanical drum brakes, and an open operator cabin. It has a substantial fuel capacity of 60.6 liters and was suited for various tasks ranging from agricultural applications to more industrial uses.
Show more...

Key Specifications

Category: Specialized, Backhoe Loader

Power Output: 56.9 or 44 or 57

Transmission: Power shuttle or Gear type with dry disc clutch

Drive Type: 2WD

Fuel Type: Gasoline or Diesel

Allis Chalmers 615 vs. Similar Tractors

Power Output
Average
Greater than 32% of similar tractors.

Technical Specifications

Engine

Manufacturer
Allis Chalmers
Model
Multiple - Allis-Chalmers or Allis-Chalmers D2200
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Gasoline or Diesel
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
160.0, 175.0, or 200.0
Bore (in)
3.62 or 3.54 or 3.87
Stroke (in)
3.62 or 4.37 or 4.12
Rated RPM
2000
Power Output (hp)
56.9 or 44 or 57

Transmission

Type
Power shuttle or Gear type with dry disc clutch
Forward Gears
4
Reverse Gears
4 (Power shuttle) / 1 (Gear type)
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
63 (steering wheel height)
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
540/1000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
10 or 13.5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
1974
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open operator station
Starter Type
Electric
Brake Type
Mechanical drum
Hydraulic System Type
Open center
