Allis Chalmers 6140

Last Updated: June 2024

Overview

The Allis Chalmers 6140 is a versatile utility tractor that was produced between 1982 and 1985. It is powered by a reliable Toyosha 2.3L three-cylinder diesel engine with a rated power output of 40 HP at 2500 RPM. The tractor is offered with either a two-wheel-drive (2WD) or an optional four-wheel-drive (4WD) system and features a 10-speed synchromesh transmission with 10 forward gears and 2 reverse gears. Designed for a variety of tasks around the farm, the Allis Chalmers 6140 has a solid chassis and can be fitted with an optional ROPS and canopy for operator safety and comfort. It also boasts an independent rear PTO with a speed of 540 RPM and a three-point hitch with a lift capacity of 3,200 lbs. The hydraulic system is of an open-center type, ensuring efficient operation of hydraulically powered implements.
Show more...

Key Specifications

Category: Utility

Power Output: 40

Transmission: Synchromesh

Drive Type: 2WD / 4WD optional

Operating Weight: 4000 for 2WD, 4400 for 4WD

Fuel Type: Diesel

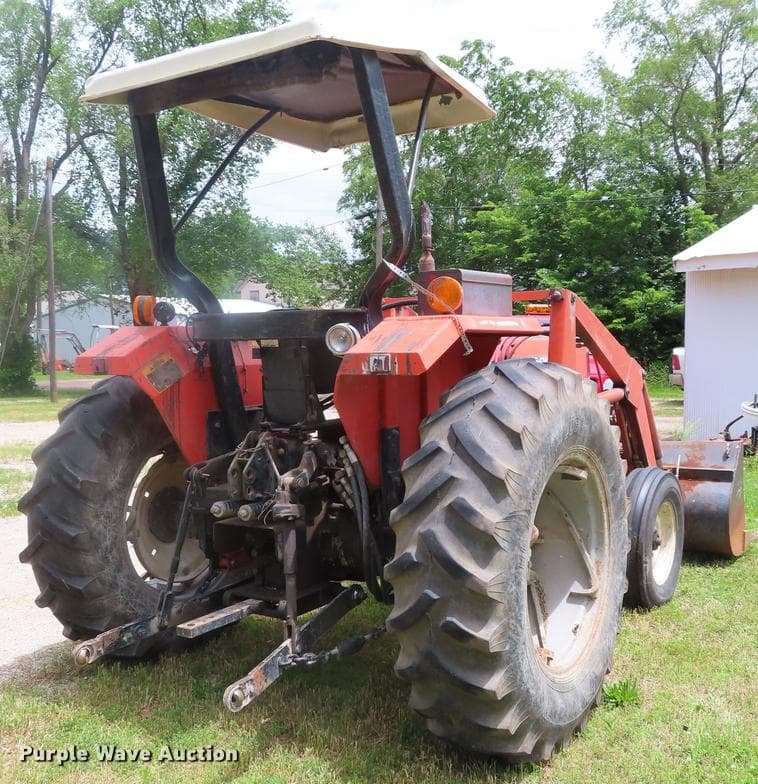

Image Gallery

Allis Chalmers 6140 Tractor Allis Chalmers 6140 Tractor Allis Chalmers 6140 Tractor Allis Chalmers 6140 Tractor Allis Chalmers 6140 Tractor Allis Chalmers 6140 Tractor

Allis Chalmers 6140 vs. Similar Tractors

Power Output
Average
Greater than 37% of similar tractors.
Hitch Capacity
Poor
Greater than 7% of similar tractors.
Operating Weight
Above Average
Greater than 75% of similar tractors.

Technical Specifications

Engine

Manufacturer
Toyosha
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
142.2
Bore (in)
3.86
Stroke (in)
4.06
Rated RPM
2500
Power Output (hp)
40

Transmission

Type
Synchromesh
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
131.5
Width (in)
68.1
Height (in)
87.8 (including exhaust)
Operating Weight (lb)
4000 for 2WD, 4400 for 4WD

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD
Drive Type
2WD / 4WD optional
Steering Type
Power
Coolant Capacity (qts)
8.5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1985
Hitch Type
I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
3,200 lbs at ends
Operator Station Type
Open, ROPS and canopy optional
Starter Type
Electric
Brake Type
Mechanical wet disc
Hydraulic System Type
Open center
