Allis Chalmers 220

Last Updated: June 2024

Overview

The Allis Chalmers 220, commonly referred to as the "Two Twenty," is a 2WD row-crop tractor, produced from 1970 to 1973 in West Allis, Wisconsin. It features an Allis Chalmers 3500 engine, a six-cylinder turbocharged diesel engine with a displacement of 426 cubic inches, capable of producing 151 horsepower at 2200 RPM. The tractor comes equipped with a sliding gear transmission with eight forward and two reverse gears, hydrostatic power steering, and dry disc brakes. It operates with a 51 US gallon fuel tank and supports a 1000 rpm rear PTO, making it well-suited for a variety of row-crop farming tasks. Depending on the need, operators could opt for an open station or upgrade to the QCS Cab starting from 1972.
Show more...

Key Specifications

Category: Row Crop

Power Output: 151

Transmission: Sliding gear

Drive Type: 2WD

Operating Weight: 12,160

Fuel Type: Diesel

Image Gallery

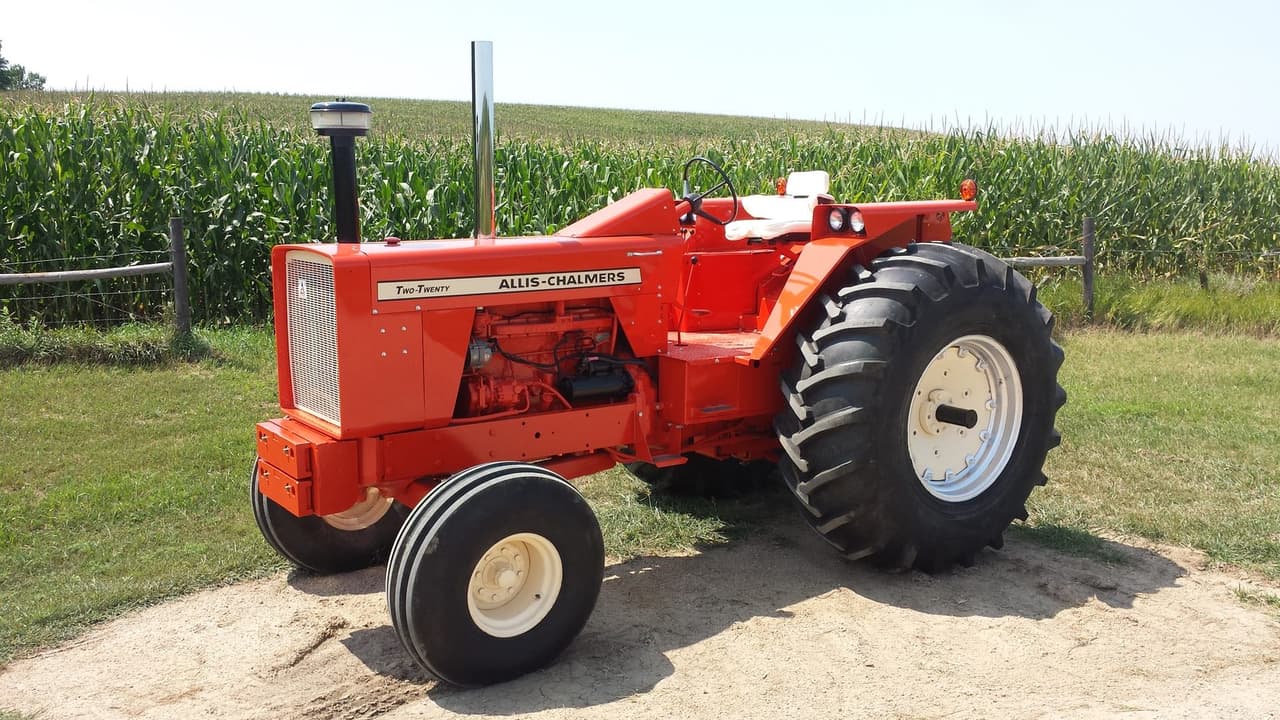

Allis Chalmers 220 Tractor Allis Chalmers 220 Tractor Allis Chalmers 220 Tractor Allis Chalmers 220 Tractor Allis Chalmers 220 Tractor Allis Chalmers 220 Tractor Allis Chalmers 220 Tractor Allis Chalmers 220 Tractor Allis Chalmers 220 Tractor Allis Chalmers 220 Tractor

Allis Chalmers 220 vs. Similar Tractors

Power Output
Average
Greater than 55% of similar tractors.
Operating Weight
Poor
Greater than 6% of similar tractors.

Technical Specifications

Engine

Manufacturer
Allis Chalmers
Model
3500
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
426
Bore (in)
4.25
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
151

Transmission

Type
Sliding gear
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
12,160

Power Take-Off (PTO)

PTO Type
Optional Transmission or Live PTO
PTO Speed 1 (rpm)
1000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
1973
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open or QCS Cab (optional from 1972)
Starter Type
Electric
Brake Type
Dry disc
Hydraulic System Type
Open center
