Allis Chalmers 210

Last Updated: June 2024

Overview

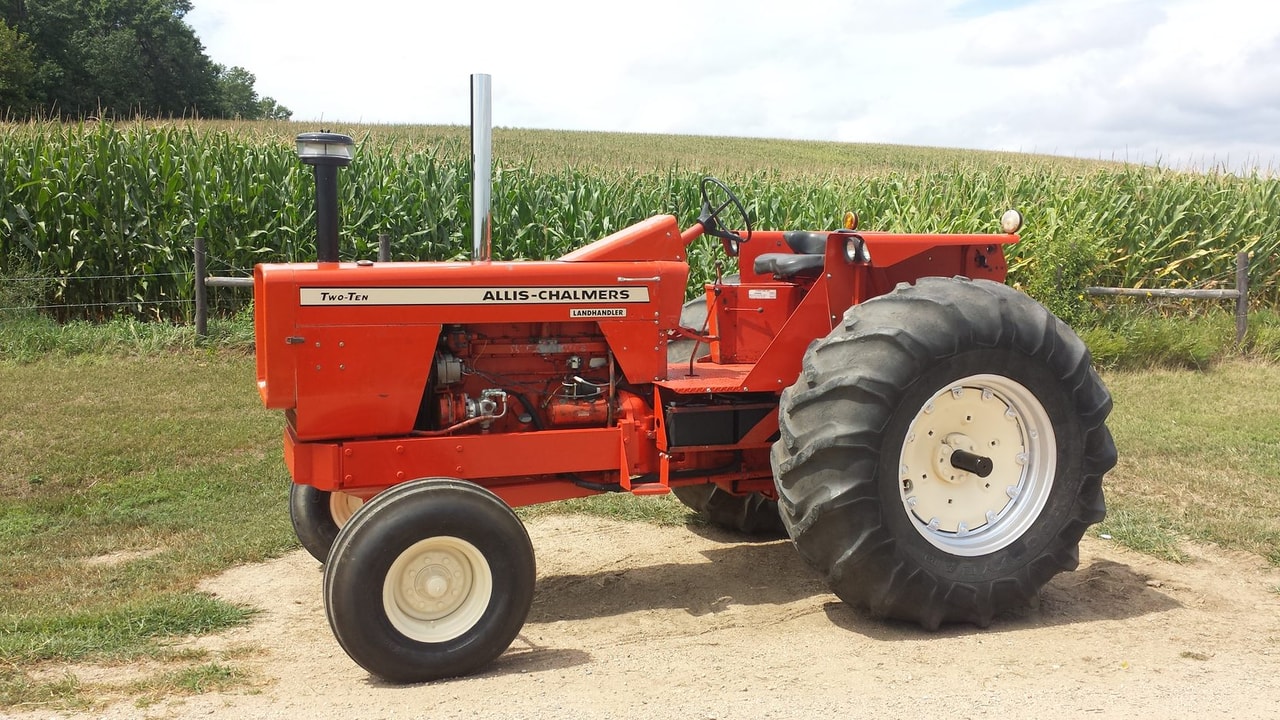

The Allis Chalmers 210, commonly referred to as the "Two-Ten," is a row-crop tractor produced by Allis Chalmers in West Allis, Wisconsin, from 1970 until 1973. It is propelled by a six-cylinder Allis Chalmers 3500 turbocharged diesel engine with a displacement of 426 cubic inches and output of 136 horsepower at 2200 RPM. The tractor has a dry disc clutch and a sliding gear transmission with eight forward and two reverse gears. It features hydrostatic power steering, disc brakes, and an open operator station, with an optional QCS Cab available from 1972. The tractor's operating weight is 12,425 pounds, and with additional ballast, it can reach a weight of 18,045 pounds.
Show more...

Key Specifications

Category: Row Crop

Power Output: 136

Transmission: Sliding gear

Drive Type: 2WD

Operating Weight: 12,425

Fuel Type: Diesel

Image Gallery

Allis Chalmers 210 Tractor Allis Chalmers 210 Tractor Allis Chalmers 210 Tractor Allis Chalmers 210 Tractor Allis Chalmers 210 Tractor Allis Chalmers 210 Tractor

Allis Chalmers 210 vs. Similar Tractors

Power Output
Average
Greater than 45% of similar tractors.
Operating Weight
Poor
Greater than 6% of similar tractors.

Technical Specifications

Engine

Manufacturer
Allis Chalmers
Model
3500
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
426
Bore (in)
4.25
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
136

Transmission

Type
Sliding gear
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
12,425

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
1,000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
1973
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open operator station or QCS Cab (optional from 1972)
Starter Type
Electric
Brake Type
Disc type
Hydraulic System Type
Open center
