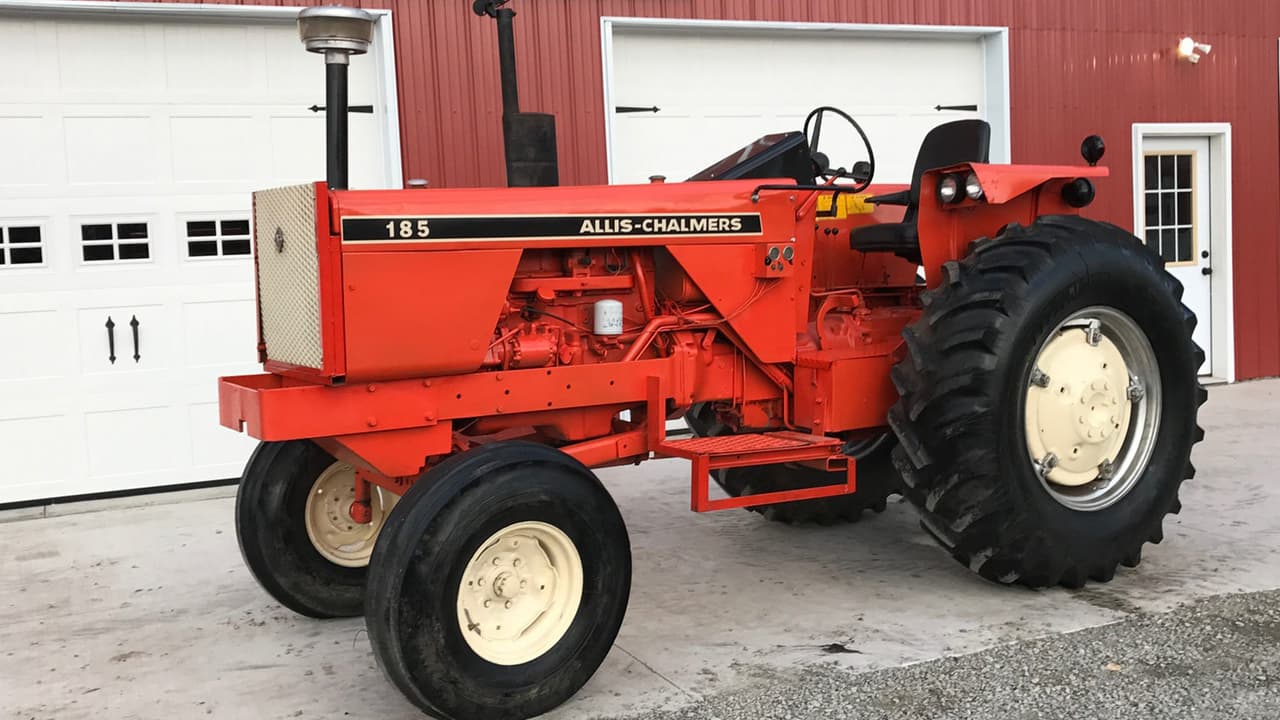

Allis Chalmers 185

Last Updated: June 2024

Key Specifications

Category: Row Crop

Transmission: Partial power shift

Drive Type: 2WD

Operating Weight: 6710

Fuel Type: Diesel

Allis Chalmers 185 vs. Similar Tractors

Operating Weight
Below Average
Greater than 24% of similar tractors.

Technical Specifications

Engine

Manufacturer
Allis-Chalmers
Model
Allis-Chalmers
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
301
Bore (in)
3.875
Stroke (in)
4.25
Rated RPM
2200
Power Output (hp)
-

Transmission

Type
Partial power shift
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
158
Width (in)
76.5
Height (in)
-
Operating Weight (lb)
6710

Power Take-Off (PTO)

PTO Type
Continuous
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
17
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1981
Hitch Type
II (Three-Point Hitch)
Hitch Category
Category II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open operator station, Two-post ROPS and canopy (optional)
Starter Type
Electric
Brake Type
Differential mechanical band and disc
Hydraulic System Type
Open center
