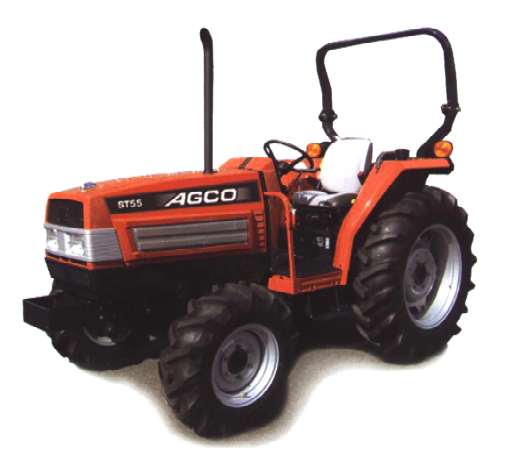

AGCO ST55

Last Updated: June 2024

Overview

The AGCO ST55 is a utility-type tractor primarily used for various agricultural tasks. With this tractor, the Iseki 4-cylinder, 173 cubic inch liquid-cooled diesel engine is capable of delivering 55.6 horsepower at a rated RPM of 2500. The steering is managed with a hydrostatic power system, and users have the ability to keep the tractor going through a variety of tasks thanks to its synchro shuttle transmission, featuring 12 forward and reverse gears. The ST55 benefits from an open center hydraulic system to power attachments and implements. The tire configurations for the AGCO ST55 are diverse, offering setups for agricultural, lawn/turf, and industrial applications. It hails a rear PTO rated at 540 RPM for powering various tools and machinery. The tractor's dimensions are noted to be 137 inches in length, 72.7 inches in width, and 98.8 inches in height with ROPS. It has an operating weight of 4417 lbs, making it a sturdy machine for its tasks. However, the tire dimensions and wheel rim diameters are not specified in the provided data. Ground clearance is ample at 12.8 inches, allowing for operation in even terrain, with front and rear tread that can be adjusted from 54.5 to 62 inches to suit the task's requirements. The ST55 provides a practical option for individuals looking for a robust and versatile tractor to meet their farming needs.
Show more...

Key Specifications

Category: Utility

Power Output: 55.6

Transmission: Synchro shuttle

Operating Weight: 4417

Fuel Type: Diesel

AGCO ST55 vs. Similar Tractors

Power Output
Average
Greater than 54% of similar tractors.
Operating Weight
Average
Greater than 40% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Indirect injection
Cylinders
4
Displacement (ci)
173
Bore (in)
-
Stroke (in)
-
Rated RPM
2500
Power Output (hp)
55.6

Transmission

Type
Synchro shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
137
Width (in)
72.7
Height (in)
98.8 (ROPS)
Operating Weight (lb)
4417

Power Take-Off (PTO)

PTO Type
Rear PTO
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/Turf, Industrial
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
