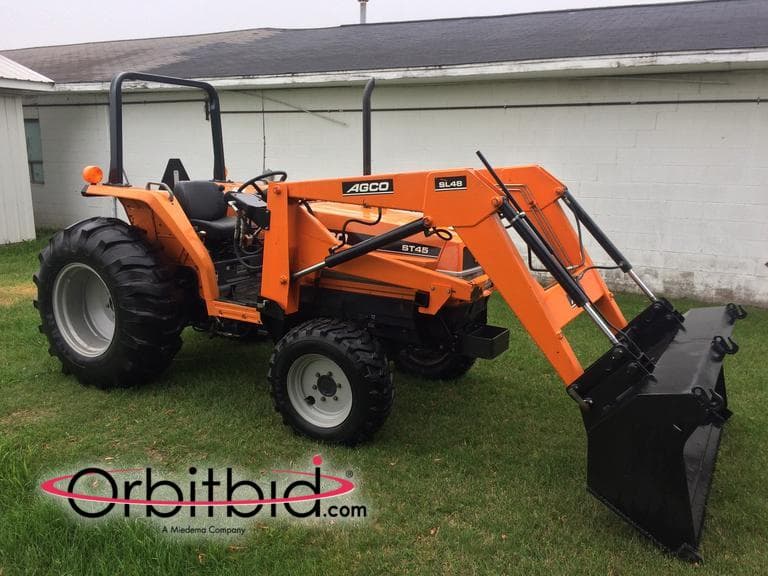

AGCO ST45

Last Updated: June 2024

Overview

The AGCO ST45, powered by an Iseki 4-cylinder diesel engine, serves a range of agricultural needs with its versatile transmission and tire options. The engine features liquid cooling, glow plug pre-heating, and indirect injection, allowing for a smooth operation with a gross power output of 44.2 horsepower and a peak torque of 139 lb-ft at 1500 rpm. It comes with multiple transmission setups including mechanical shuttle, power shuttle, and hydrostatic, all providing 16 forward and reverse gears, except for the hydrostatic which offers an infinite range within its four ranges. Standard agricultural tires are sized at 9.5-16 in the front and 13.6-28 at the rear, with optional turf tires for different tasks around the farm or estate. With a wheelbase of 78.9 inches and a shipping weight of 4448 lbs, the ST45 balances maneuverability with a solid presence on the field. Its dimensions enable it to operate effectively in various settings, while the potential maximum weight of 6000 lbs assures robust performance in heavier-duty operations. A Category I three-point hitch at the rear enhances its utility. The ST45 is designed with the user in mind, featuring a roll-over protection structure (ROPS), a 12-volt electric starter, and a hydraulic system operating at 5.2 gallons per minute with a 2485 psi pressure, ensuring a responsive and safe experience.
Show more...

Key Specifications

Power Output: 44.2

Transmission: Mechanical Shuttle / Power Shuttle / Hydrostatic

Operating Weight: 4448

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Iseki
Model
E4CG
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
134.1
Bore (in)
3.43
Stroke (in)
3.64
Rated RPM
2600
Power Output (hp)
44.2

Transmission

Type
Mechanical Shuttle / Power Shuttle / Hydrostatic
Forward Gears
16 (with mechanical/power shuttle) / Infinite (with hydrostatic)
Reverse Gears
16 (with mechanical/power shuttle) / Infinite (with hydrostatic)
Total Gears
-

Dimensions

Length (in)
137
Width (in)
69.1
Height (in)
89
Operating Weight (lb)
4448

Power Take-Off (PTO)

PTO Type
540 (rear) / 2000 (mid)
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
2000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Power (assumed from steering flow and pressure specs)
Coolant Capacity (qts)
10
Front Tire Diameter (in)
16 (standard ag), 15 (lawn/turf)
Front Tire Width (in)
-
Rear Tire Diameter (in)
28 (standard ag), 20 (lawn/turf)
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag / Turf
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric (12 volts)
Brake Type
-
Hydraulic System Type
Open Center
