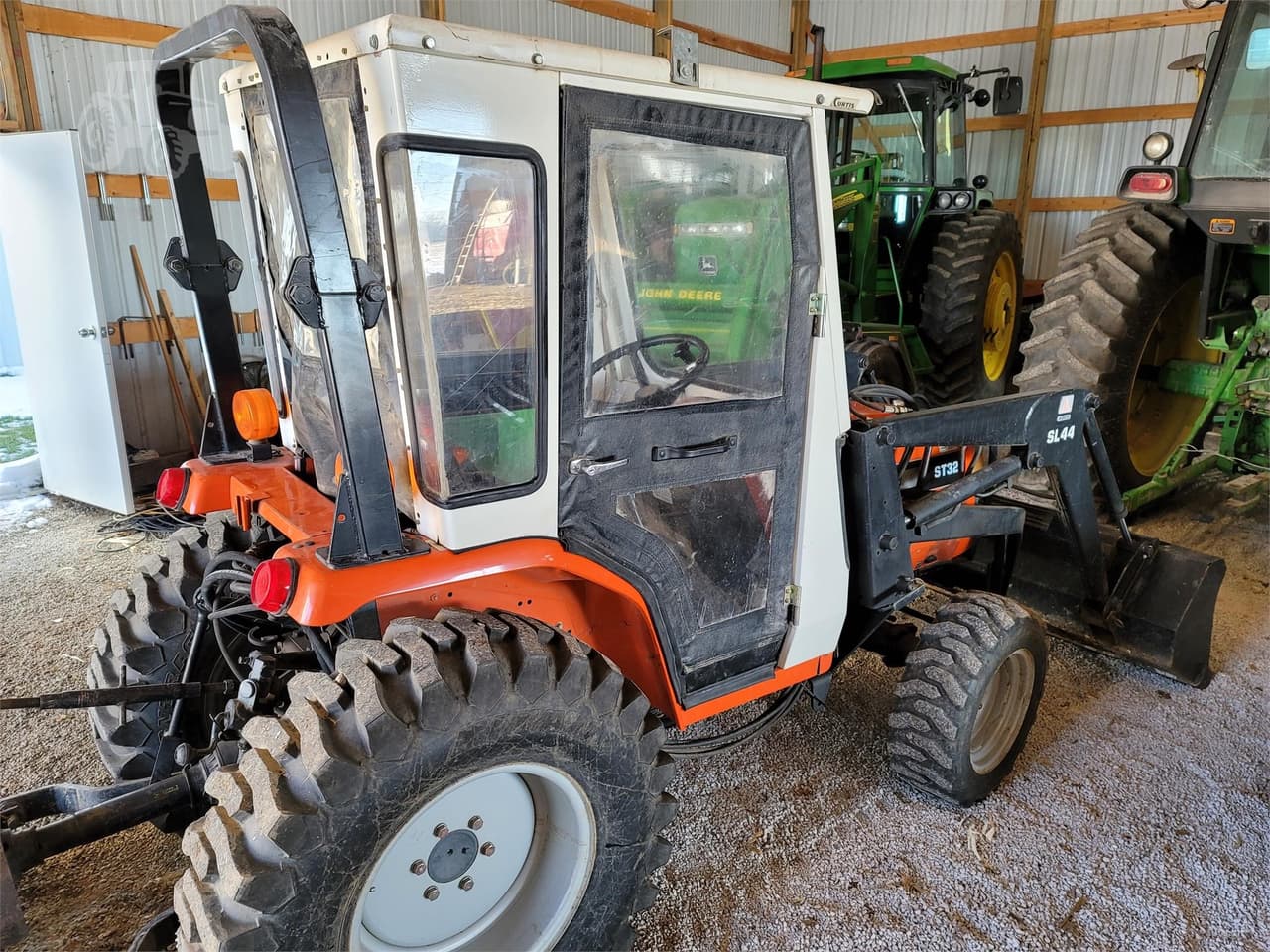

AGCO ST32

Last Updated: June 2024

Overview

The AGCO ST32 is a compact utility tractor that offers a versatile and durable solution for those with varied agricultural needs. With a four-wheel-drive (4WD) chassis and hydrostatic power steering, this tractor is designed to provide comfortable operation and maneuverability. It is powered by a robust Iseki diesel, three-cylinder, liquid-cooled engine, with a displacement of 91.4 cubic inches, generating 33 horsepower at a rated RPM of 2600. Transmission is hydrostatic with infinite (3-range) forward and reverse gears, rendering it capable of handling tasks with varying power requirements efficiently. The tractor possesses an open-center hydraulic system and comes equipped with a rear hitch of type I. The ST32 has a significant operating weight of 2642 pounds and is designed with operator safety in mind, featuring a Rollover Protection Structure (ROPS) with a height of 79.3 inches. This tractor’s dimensions make it suitable for a variety of tasks with a length of 116.5 inches, a width of 51 inches, and a wheelbase of 65.6 inches, ensuring stability during operation.
Show more...

Key Specifications

Category: Utility

Power Output: 33

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2642

Fuel Type: Diesel

AGCO ST32 vs. Similar Tractors

Power Output
Below Average
Greater than 29% of similar tractors.
Operating Weight
Below Average
Greater than 21% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Indirect Injection
Cylinders
3
Displacement (ci)
91.4
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
33

Transmission

Type
Hydrostatic
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
116.5
Width (in)
51
Height (in)
79.3 (ROPS)
Operating Weight (lb)
2642

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
18
Rear Tire Width (in)
12.5
Front/Rear Rim Diameter (in)
-
Tire Type
Industrial
Manufacture - End Year
-
Hitch Type
Rear Type: I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
