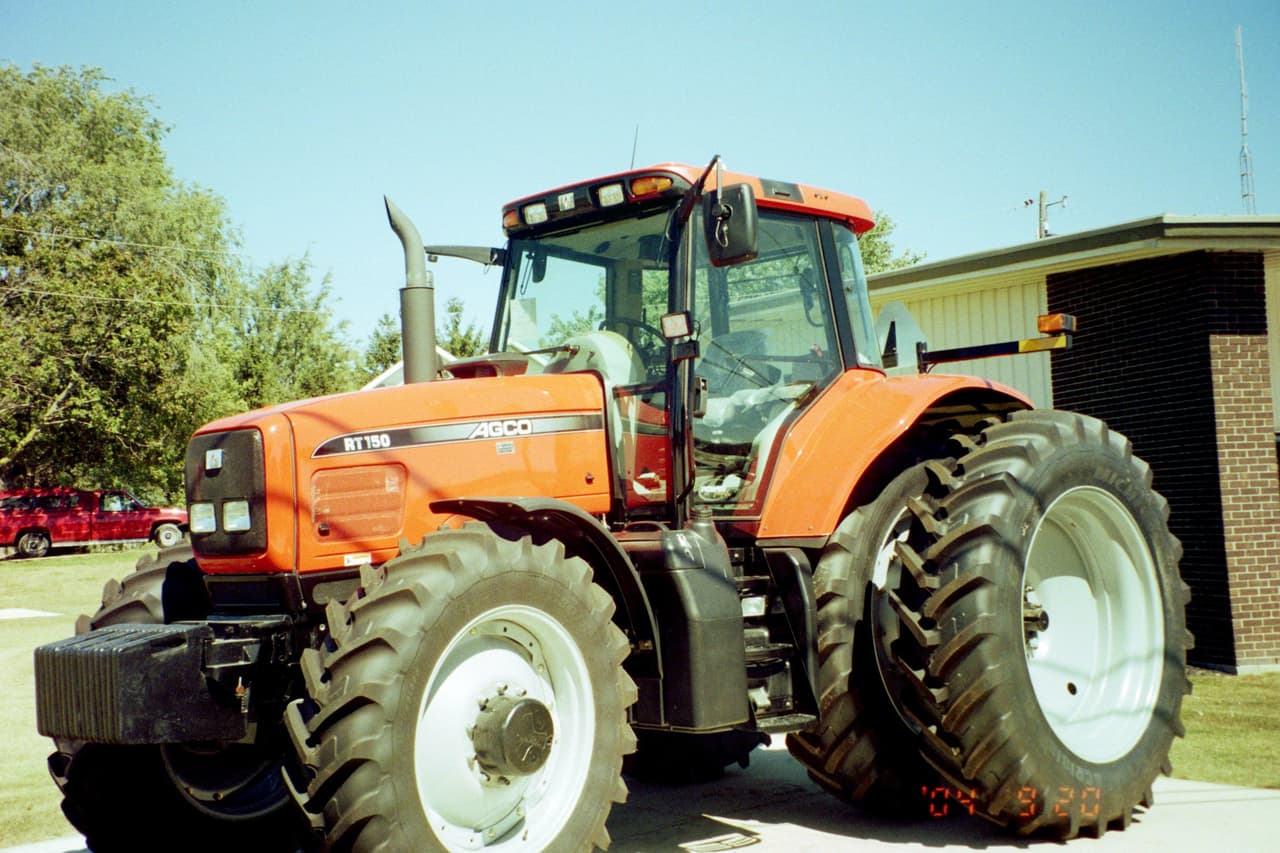

AGCO RT150

Last Updated: June 2024

Overview

The AGCO RT150 is a robust row-crop tractor designed to offer reliable and versatile performance. With its Cummins turbocharged diesel engine, this tractor delivers adequate power and efficiency. The liquid-cooled engine, with a displacement of 408 cubic inches, operates at a rated 2200 RPM and generates a torque of 551 lb-ft at just 1200 RPM. Users can select from two transmission options: a continuously variable transmission (CVT) for ease of use and smooth operation, and a 32 forward and reverse gear partial power shift transmission for more precise control. The tractor's hydrostatic power steering and 4x2 2WD chassis make it maneuverable in various farming applications. Furthermore, it is equipped with a closed-center pressure flow compensating (PFC) hydraulic system to meet demanding tasks. This model has a spacious operator's cab to ensure comfort and productivity during long working hours.
Show more...

Key Specifications

Category: Row Crop

Transmission: continuously variable transmission (CVT) and partial power shift

Drive Type: 2WD

Operating Weight: 14528 to 16415

Fuel Type: turbocharged diesel

AGCO RT150 vs. Similar Tractors

Operating Weight
Excellent
Greater than 94% of similar tractors.

Technical Specifications

Engine

Manufacturer
Cummins
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
turbocharged diesel
Induction Type
turbocharged
Cylinders
6
Displacement (ci)
408 ci
Bore (in)
4.094 inches
Stroke (in)
5.197 inches
Rated RPM
2200
Power Output (hp)
-

Transmission

Type
continuously variable transmission (CVT) and partial power shift
Forward Gears
Infinite (2-range) forward for CVT, 32 for partial power shift
Reverse Gears
Infinite (2-range) reverse for CVT, 32 for partial power shift
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
14528 to 16415

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
II/IIIN
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric 12V
Brake Type
-
Hydraulic System Type
closed center pressure flow compensating (PFC)
