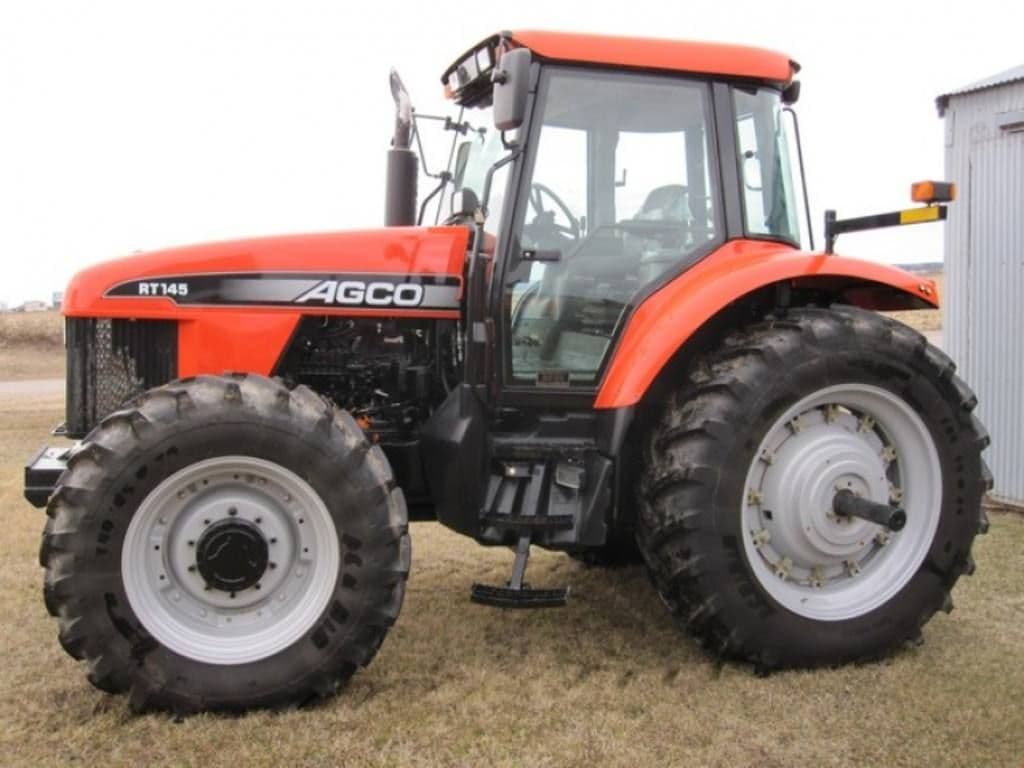

AGCO RT145

Last Updated: June 2024

Key Specifications

Category: Row Crop

Transmission: Full power shift and partial power shift

Drive Type: 2WD

Operating Weight: 14880 to 16894

Fuel Type: Diesel

Image Gallery

AGCO RT145 Tractor AGCO RT145 Tractor AGCO RT145 Tractor AGCO RT145 Tractor AGCO RT145 Tractor AGCO RT145 Tractor AGCO RT145 Tractor AGCO RT145 Tractor AGCO RT145 Tractor AGCO RT145 Tractor

AGCO RT145 vs. Similar Tractors

Operating Weight
Excellent
Greater than 94% of similar tractors.

Technical Specifications

Engine

Manufacturer
Cummins
Model
B5.9T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
359
Bore (in)
4.016
Stroke (in)
4.724
Rated RPM
2200
Power Output (hp)
-

Transmission

Type
Full power shift and partial power shift
Forward Gears
32
Reverse Gears
32
Total Gears
-

Dimensions

Length (in)
198
Width (in)
117.7
Height (in)
120
Operating Weight (lb)
14880 to 16894

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (Rear Type: 3/3N)
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric (12 volts)
Brake Type
-
Hydraulic System Type
Closed center
