AGCO RT120A

Last Updated: June 2024

Overview

The AGCO RT120A is designed to serve the needs of a variety of agricultural demands. Equipped with a 6.6L engine and Auto QuadraShift transmission that offers 24 forward and reverse gears, it provides flexibility and efficiency for a range of tasks. Operating at a rated RPM of 2200, the engine details beyond model and displacement remain unspecified. This tractor features a wheelbase of 9.7 feet, contributing to its stability and maneuverability. The hydraulic system ensures a flow capacity of 29 gallons per minute and operates at a relief valve pressure of 2900 psi, enabling it to handle demanding implements with a 9391-pound lift capacity on the three-point hitch. Additional electrical support is provided by a 120-amp alternator, and the tractor operates on a 24V system with a fuel capacity of 18.5 gallons. The operating weight of the tractor is 11404.6 pounds.

Key Specifications

Transmission: Auto QuadraShift

Operating Weight: 11404.6

Lift Capacity: 9391

Image Gallery

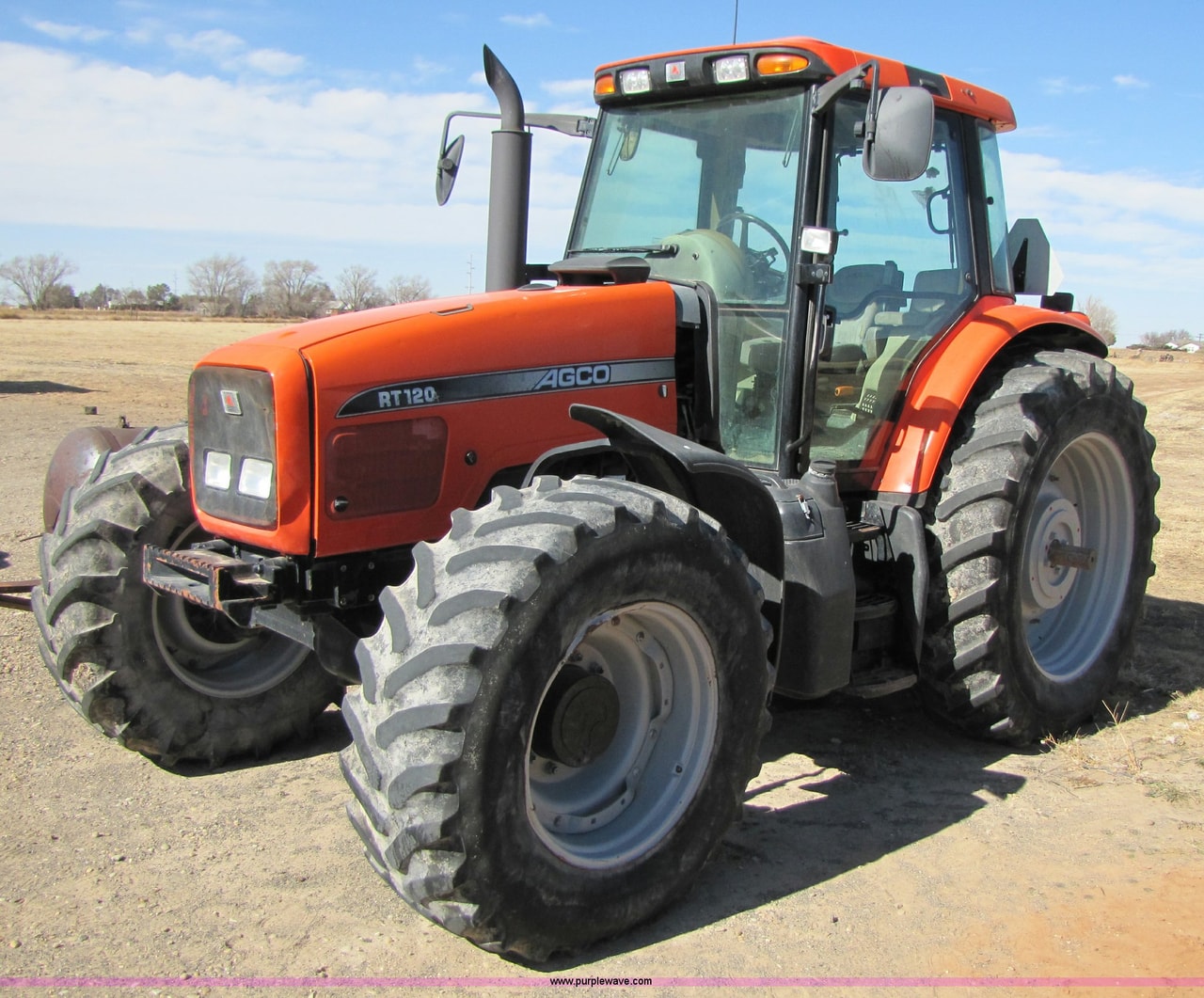

AGCO RT120A Tractor

Technical Specifications

Engine

Manufacturer: -
Model: 6.6L
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: -
Induction Type: -
Cylinders: -
Displacement (ci): 402.8
Bore (in): -
Stroke (in): -
Rated RPM: 2200
Power Output (hp): -

Transmission

Type: Auto QuadraShift
Forward Gears: 24
Reverse Gears: 24
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 11404.6

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Category II Three-Point Hitch
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): 9391
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -

Test Results

Nebraska Tractor Test Laboratory - Test Date: November 2007 - January 2008

Maximum Power and Fuel Consumption

Maximum Power: 147.2 HP (109.8 kW) at 1900 rpm
Fuel Consumption at Maximum Power: 8.05 Gal/hr (30.49 l/h) with a fuel efficiency of 0.389 lb/hp.hr (0.237 kg/kW.h)
Standard Power Take-off Speed (1000 rpm): 143.9 HP (107.3 kW) at 2030 rpm with a fuel consumption of 8.25 Gal/hr (31.22 l/h)

Drawbar Performance

Maximum Power in 12th Gear (3A): 97.1 HP (72.4 kW) with a drawbar pull of 6750 lbs (30.0 kN) at a speed of 5.39 mph (8.68 km/h)
Fuel Consumption in 12th Gear (3A): 0.502 lb/hp.hr (0.305 kg/kW.h) with a fuel efficiency of 14.18 Hp.hr/gal (2.79 kW.h/l)

Torque and Engine Performance

Maximum Torque: 478.3 lb.-ft. (648.5 Nm) at 1400 rpm
Torque Rise: 56.8%

Hydraulic Performance

Maximum Force Exerted: 8810 lbs (39.2 kN)
Pump Delivery Rate: 29.5 GPM (111.7 l/min) at minimum pressure
Hydraulic Power: 35.9 HP (26.7 kW) at a delivery pressure of 2265 psi (156 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 17.45 Hp.hr/gal (3.44 kW.h/l)
Fuel Consumption: 8.25 Gal/hr (31.22 l/h) at 2030 rpm

NTTL.(2007).Nebraska Summary: S694 AGCO RT120A Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/3170
