AGCO RT115

Last Updated: June 2024

Overview

The AGCO RT115 is a robust row-crop tractor designed to meet the demanding needs of modern agriculture. Sporting a 4x2 2WD chassis, this tractor is capable of handling a variety of tasks with ease. The hydrostatic power steering system enhances maneuverability, while the 32-speed partial power shift transmission ensures a wide range of speed options for different farming applications. At the heart of the RT115 is a potent Cummins B5.9T turbocharged diesel engine, which offers a displacement of 359 cubic inches. Engine operation is rated at 2200 RPM, allowing for adequate power delivery across the working range. The tractor's spacious operator cabin, with an optional height of 109 inches, offers comfort for long working hours. Despite lacking specific data on additional features and precise power output, this model is a solid workhorse that exemplifies durability and performance in agricultural settings.

Key Specifications

Category: Row Crop

Transmission: Partial power shift

Drive Type: 2WD

Operating Weight: 12900

Fuel Type: Diesel

Image Gallery

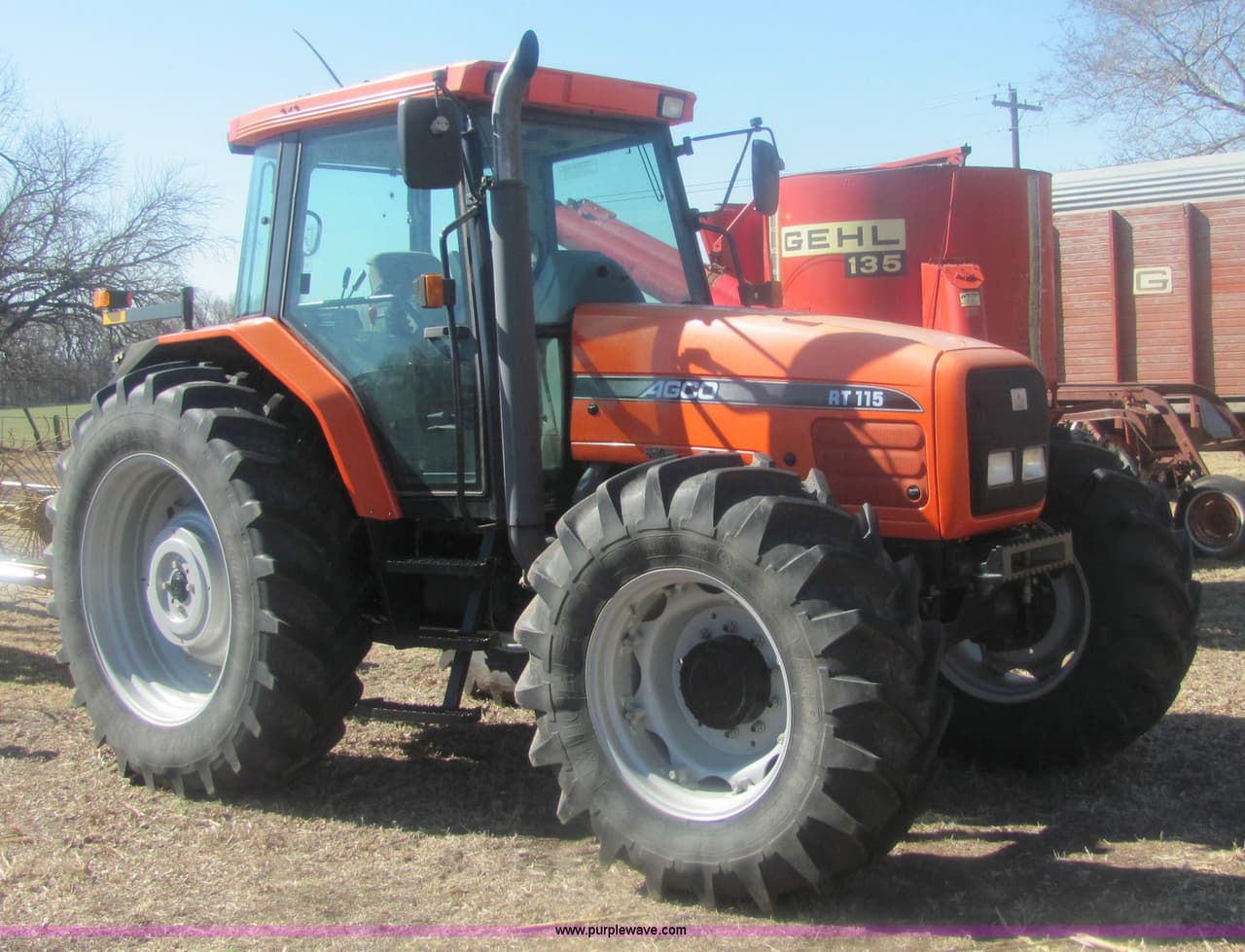

AGCO RT115 Tractor

AGCO RT115 vs. Similar Tractors

Operating Weight

Average

Greater than 51% of similar tractors.

Technical Specifications

Engine

Manufacturer: Cummins
Model: B5.9T
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 359
Bore (in): 4.016
Stroke (in): 4.724
Rated RPM: 2200
Power Output (hp): -

Transmission

Type: Partial power shift
Forward Gears: 32
Reverse Gears: 32
Total Gears: -

Dimensions

Length (in): 173
Width (in): 88
Height (in): 109
Operating Weight (lb): 12900

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Category II
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric (12 volts)
Brake Type: -
Hydraulic System Type: Closed center

Test Results

Nebraska Tractor Test Laboratory - Test Date: April - June, 2002

Maximum Power and Fuel Consumption

Maximum Power: 121.4 HP (90.5 kW) at 1949 rpm
Fuel Consumption at Maximum Power: 7.10 Gal/hr (26.87 l/h) with a fuel efficiency of 0.414 lb/hp.hr (0.252 kg/kW.h)
Standard Power Take-off Speed (1000 rpm): 120.4 HP (89.8 kW) at 2000 rpm

Drawbar Performance

Maximum Power in 21st Gear: 110.0 HP (82.0 kW) with a drawbar pull of 5725 lbs (25.5 kN) and a speed of 7.21 mph (11.59 km/h)
Fuel Consumption at Maximum Power in 21st Gear: 0.467 lb/hp.hr (0.284 kg/kW.h) with a fuel efficiency of 15.18 Hp.hr/gal (2.99 kW.h/l)

Torque and Engine Performance

Maximum Torque: 386.2 lb.-ft. (523.7 Nm) at 1347 rpm
Torque Rise: 39.1%

Hydraulic Performance

Maximum Force Exerted: 9440 lbs (42.0 kN) through the whole range
Pump Delivery Rate at Minimum Pressure: 28.1 GPM (106.4 l/min)
Pump Delivery Rate at Maximum Hydraulic Power: 24.4 GPM (92.2 l/min) at 2280 psi (157 bar)

Tractor Sound Level

Sound Level with Cab at No Load in 13th Gear: 77.0 dB(A)

Nebraska Tractor Test Lab.(2002).Nebraska Summary 382: AGCO RT115 Diesel. Nebraska Tractor Tests. 152. Retrieved from https:/ /digitalcommons.unl.edu/tr actormuseumlit/152
