AGCO GT55

Last Updated: June 2024

Overview

The AGCO GT55 is a utility tractor equipped with a choice between 2WD and 4WD configurations, indicating versatility and suitability for a variety of tasks on the farm. The power steering and synchro-shuttle transmission with 16 forward and 8 reverse gears enhance operational efficiency and ease of use. At the heart of the GT55 lies a turbocharged diesel engine from SAME Deutz-Fahr with 3 cylinders and a displacement of 183 cubic inches, capable of delivering 56 horsepower at 2200 RPM. This model boasts a Category II hitch at the rear and can offer either a configuration with ROPS or a more protected cabin setup. The tractor's dimensions span 145.7 inches in length, 70.4 inches in width, and 104.6 inches in height, with the operating weight reaching up to 6225 pounds in its heaviest set-up, designed to withstand rigorous farm tasks.

Key Specifications

Category: Utility

Power Output: 56

Transmission: Synchro-shuttle

Drive Type: 2WD and 4WD options available

Operating Weight: 6225 (heaviest configuration)

Fuel Type: Diesel

Image Gallery

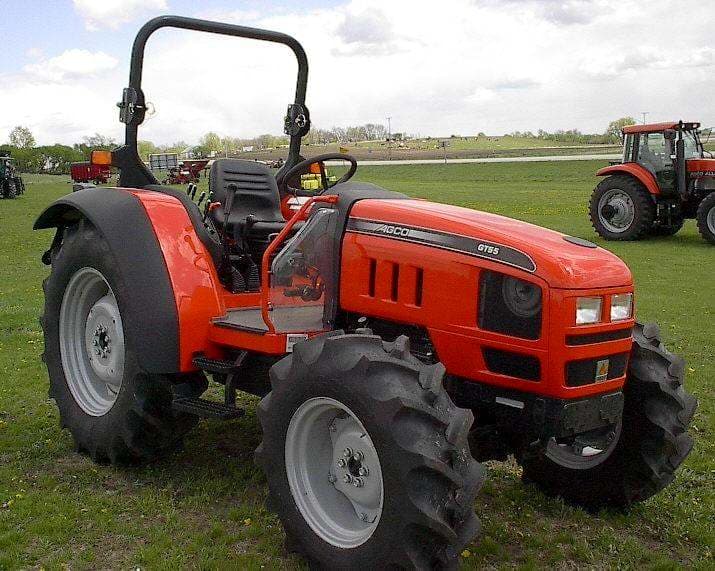

AGCO GT55 Tractor

AGCO GT55 vs. Similar Tractors

Power Output

Average

Greater than 54% of similar tractors.

Operating Weight

Average

Greater than 49% of similar tractors.

Technical Specifications

Engine

Manufacturer: SAME Deutz-Fahr
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Horizontal
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 3
Displacement (ci): 183
Bore (in): 4.134
Stroke (in): 4.547
Rated RPM: 2200
Power Output (hp): 56

Transmission

Type: Synchro-shuttle
Forward Gears: 16
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 145.7
Width (in): 70.4
Height (in): 104.6
Operating Weight (lb): 6225 (heaviest configuration)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD and 4WD options available
Steering Type: Power steering
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: II
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Options for ROPS or Cab
Starter Type: 12 volts electric starter
Brake Type: -
Hydraulic System Type: Open center
