AGCO DT220A

Last Updated: June 2024

Overview

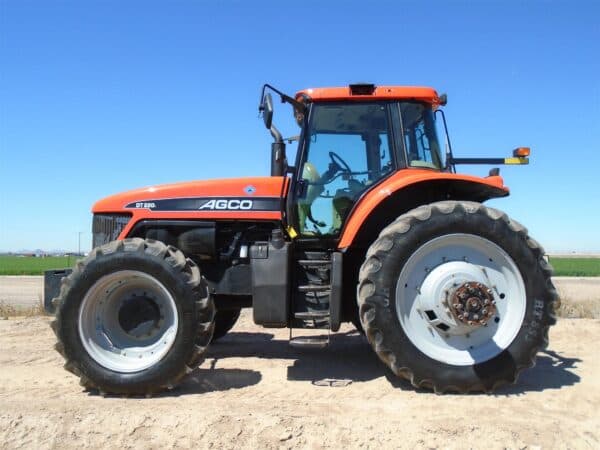

The AGCO DT220A is a high-powered, 4WD row-crop tractor from AGCO's DT-A series that was produced between 2005 and 2008 in Beauvais, France. At its core, the DT220A features a six-cylinder turbocharged intercooled diesel engine by Sisu Diesel with a displacement of 513 cubic inches, producing 260 horsepower at 2200 RPM. A key characteristic of this workhorse is its cutting-edge continuously variable transmission, known as the PowerMaxx CVT, that allows for a broad range of infinite forward and reverse gears. With a three-point hitch system Category III, it boasts a significant lift capacity of 14,400 pounds. The tractor is designed for optimum operator comfort with an available cab that features optional pneumatic suspension as well as electric starting mechanism. Hydraulic wet disc brakes provide reliable stopping power, and the sophisticated hydrostatic power steering aids in smooth maneuverability. This model's hydraulic system operates on a closed center pressure flow compensated system, supporting a flow of 39.0 gallons per minute. Additional features include the possibility of adding a HydraMaxx front axle for enhanced performance.
Show more...

Key Specifications

Category: Row Crop

Power Output: 260

Transmission: Continuously Variable Transmission (CVT)

Drive Type: 4WD

Operating Weight: 19,951

Fuel Type: Diesel

AGCO DT220A vs. Similar Tractors

Power Output
Above Average
Greater than 83% of similar tractors.
Hitch Capacity
Below Average
Greater than 21% of similar tractors.
Operating Weight
Below Average
Greater than 13% of similar tractors.

Technical Specifications

Engine

Manufacturer
Sisu Diesel
Model
Sisu Diesel
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
513
Bore (in)
4.37
Stroke (in)
5.71
Rated RPM
2200
Power Output (hp)
260

Transmission

Type
Continuously Variable Transmission (CVT)
Forward Gears
Infinite (two-range)
Reverse Gears
Infinite (two-range)
Total Gears
-

Dimensions

Length (in)
206
Width (in)
-
Height (in)
122
Operating Weight (lb)
19,951

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2008
Hitch Type
Three-Point Hitch
Hitch Category
Category III
Hitch Position
Rear
Hitch Capacity (lb)
14,400 lbs
Operator Station Type
Cab with optional pneumatic suspension
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Closed center pressure flow compensated (PFC)
