AGCO AGCOSTAR 8425

Last Updated: June 2024

Overview

The AGCO AGCOSTAR 8425 is a large 4WD farm tractor designed for heavy-duty work on large-scale farms. Manufactured by AGCO in Coldwater, Ohio, from 1995 to 2001, this robust machine comes equipped with a choice of two six-cylinder, turbocharged diesel engines – the Cummins N14 with a displacement of 855 cubic inches and the Detroit Diesel with a displacement of 774 cubic inches. However, the Detroit Diesel engine option was phased out after 1998. The tractor features an 18-speed forward and 2-speed reverse transmission by Eaton Fuller, hydrostatic power steering for ease of maneuvering, and hydraulic disc brakes for efficient stopping power. Designed for efficiency and comfort during long working hours, the AGCOSTAR 8425 also includes a cabin with heating and air conditioning systems. Its heavy-duty chassis and robust body make the tractor fit for the most demanding of agricultural tasks.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 425

Transmission: Partially synchronized

Drive Type: 4WD

Operating Weight: 28300 (Shipping) / 40375 (Ballasted)

Fuel Type: Diesel

Image Gallery

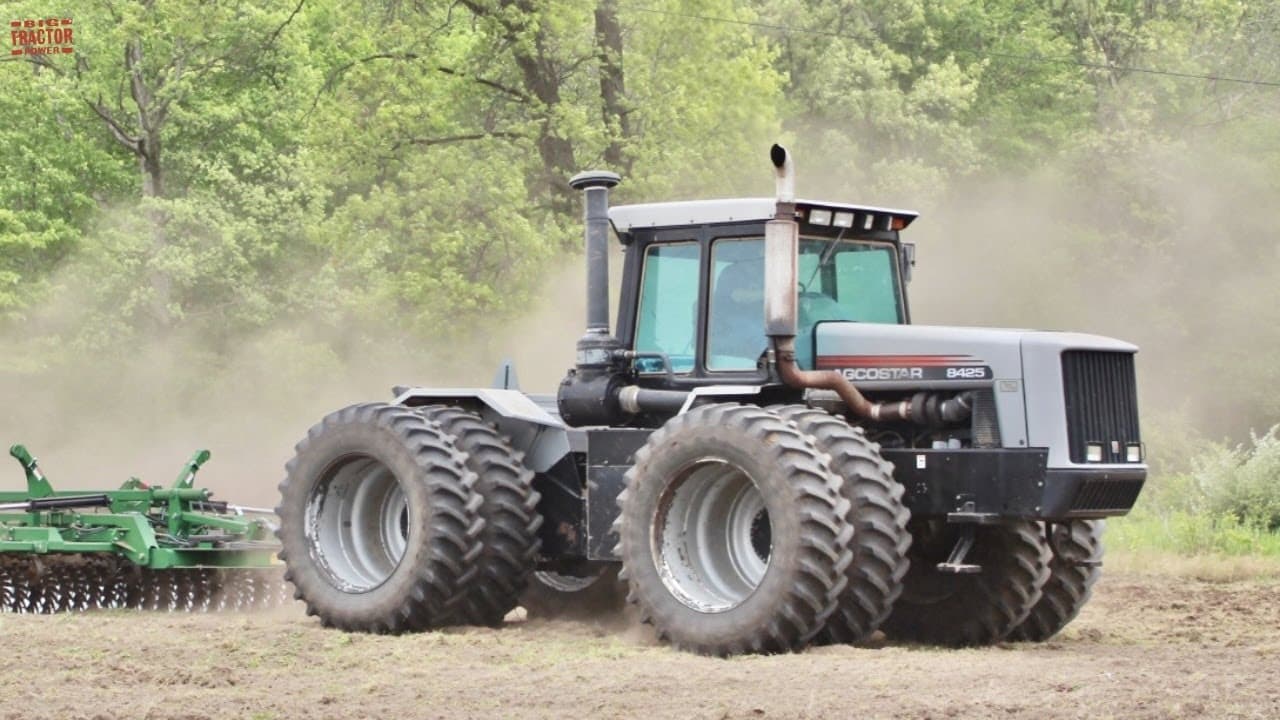

AGCO AGCOSTAR 8425 Tractor AGCO AGCOSTAR 8425 Tractor AGCO AGCOSTAR 8425 Tractor AGCO AGCOSTAR 8425 Tractor AGCO AGCOSTAR 8425 Tractor AGCO AGCOSTAR 8425 Tractor AGCO AGCOSTAR 8425 Tractor AGCO AGCOSTAR 8425 Tractor AGCO AGCOSTAR 8425 Tractor AGCO AGCOSTAR 8425 Tractor

AGCO AGCOSTAR 8425 vs. Similar Tractors

Power Output
Excellent
Greater than 97% of similar tractors.
Operating Weight
Excellent
Greater than 95% of similar tractors.

Technical Specifications

Engine

Manufacturer
Cummins / Detroit Diesel
Model
Cummins N14 / Detroit Diesel
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
855 (Cummins) / 774 (Detroit Diesel)
Bore (in)
5.5
Stroke (in)
6
Rated RPM
2100
Power Output (hp)
425

Transmission

Type
Partially synchronized
Forward Gears
18
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
272.4
Width (in)
152.9
Height (in)
Cab: 133.2 / Hood: 94.6 / Exhaust: 138.9
Operating Weight (lb)
28300 (Shipping) / 40375 (Ballasted)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
42
Front Tire Width (in)
-
Rear Tire Diameter (in)
42 (20.8R42)
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2001
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cabin with heat and air conditioning
Starter Type
Electric
Brake Type
Hydraulic disc
Hydraulic System Type
Closed center
